ASBN-D130/230  深紫外氘光源组件

ASBN-D130/230  深紫外氘光源组件

深紫外氘光源

  • Provides maximum possible illumination
  • Contains 1" quartz doublet assembly for optimum coupling
  • Assures maximum stability and lifetime of lamp

Optimum UV Illumination for Fiber Optics

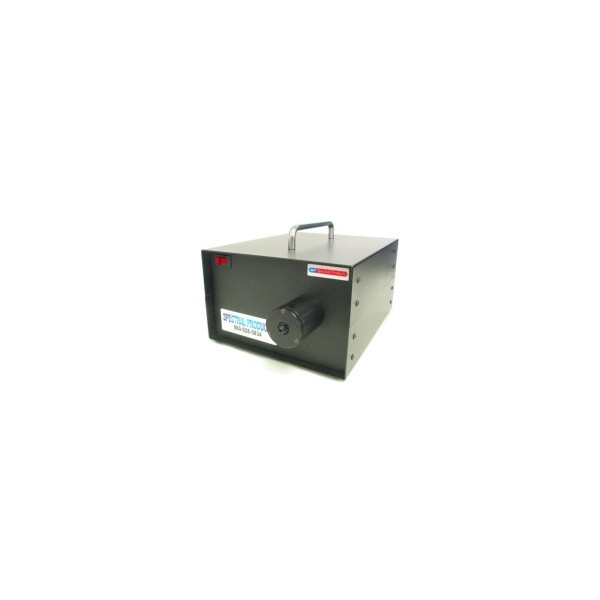

The ASBN-D130/230 is a deep UV ultraviolet deuterium light source for the 180-400nm (max. 160-400nm) region. It has been designed to provide the maximum possible illumination either directly or through an optical fiber.
The ASBN-D130 consists of one 30 watt deep UV deuterium lamp, a housing and a regulated power supply. The housing contains a 1" quartz doublet (f#/1.0, 1X) assembly for maximum possible illumination to the optical fiber.
The ASBN-D230 consists of two 30 watt deep UV deuterium lamps, a housing and two regulated power supplies. The housing contains two 1" quartz doublet (f#/1.0, 1X) assemblies. One is for focusing the second deuterium lamp on the first lamp and the other is for maximum possible illumination to the optical fiber. The first deuterium lamp has a "see-through" hole to allow the light from a secondary source to pass through the same light path as the first one.
The 30 watt deuterium lamp used in the ASBN-D130/230 has an average lifetime of 1,000 hours under regulated conditions. The life end is defined as the time when the UV region radiant intensity falls below 50% of its initial value or when output fluctuation exceeds 0.03%.
The power supply provided with the ASBN-D130/230 is a dc current regulated one. This assures maximum stability and lifetime of the lamp.
Please click here to view the manual for this light source.



Feature

Value

Lamp:

Type: Deuterium with fused silica jacket, mounted and pre-aligned.
Power input: 30 Watt (nominal) per each lamp
Lamp current: 300 ± 30 mA DC
Average Life: 1000 hours (nominal)

Lamp Housing:

1" quartz doublet (f#/1, 1X) collection lens.
Convection cooled.
Dimension: 6" X 5" X 10"

Power Supply:

Power input:115 vac, 50/60 Hz, 3 amps. 230 vac, 50/60 Hz, 1 amp, optional
Power output: Constant current dc, 60-120vdc selectable, 300 mA DC
Regulation: + 10 mA
Stability: 100 ppm/°C
Operating Temperature: 5-35°C

Warranty:

One year

Options:

Spare lamp (mounted and pre-aligned),
Specify SM, FC, ST, CL, or CS for specific fiber couplers.
