硅标准具

硅标准具

SILICON ETALONS

硅标准具

HIGH INDEX ETALONS FOR THE INFRARED (NOTE: THE PATTERN ON THE ENDS IS JUST A REFLECTION...)

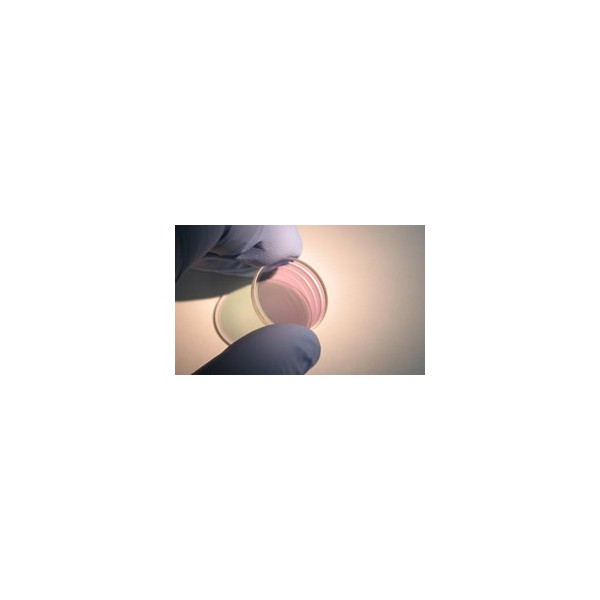

Solid Silicon Etalons



Solid silicon etalons are interesting because the high index of silicon (3.4 depending on wavelength) creates a reasonably high finesse without any coatings. The temperature sensitivity of silicon can also be useful (or problematic). These etalons are often used to monitor the wavelengths of long wavelength lasers.





  • Material: Silicon
  • Wavelength range: IR 1.2um to 6.3um
  • Wedge < 0.5 arc second*
  • Surface quality: 40/20 or better
  • Surface figure: λ/20
  • Mounting: the 8x8mm and 14x14mm etalons can be cemented to a 1" diameter holder
  • Finesse is ~2.5 dependent on the wavelength
  • Thickness: see table
  •  If your etalons require coatings then we can use our fluid jet polishing system to reduce the wedge and increase the finesse
  • We have two standard sizes for the silicon etalons
  • 8 x 8mm
  • 1" diameter





8 X 8MM THIN SILICON ETALONS

1660GHz Solid Silicon Etalon

Part Number: OP-3852-25

Details: 0.025mm thick, 8mm x 8mm, clear aperture 5mm


1300GHz Solid Silicon Etalon

Part Number: OP-3852-30

Details: 0.030mm thick, 8mm x 8mm, clear aperture 5mm




1080GHz Solid Silicon Etalon

Part Number: OP-3852-40

Details: 0.040mm thick, 8mm x 8mm, clear aperture 5mm




830GHz Solid Silicon Etalon

Part Number: OP-3852-50

Details: 0.050mm thick, 8mmx8mm, clear aperture 5mm




415GHz Solid Silicon Etalon

Part Number: OP-3852-100

Details: 0.100mm thick, 8mm x 8mm, clear aperture 5mm diameter




100GHz Solid Silicon Etalon

Part Number: OP-3852-416

Details: 0.416mm thick, 8mm x 8mm, clear aperture 5mm diameter




50GHz Solid Silicon Etalon

Part Number: OP-3852-831

Details: 0.831mm thick, 8mm x 8mm, clear aperture 5mm diameter



8mm Etalon Mount

Part Number: OP-4397-8

Details: 1" diameter aluminum mount designed to hold a 8mm x 8mm etalon.  Price includes cemented the etalon to the mount at LigthMachinery.



THICK SILICON ETALONS

4.1mm Solid Silicon Etalon

Part Number: OP-2638-4155

Details: 4.155mm long,  ~10GHz, 1" diameter




8.3mm Solid Silicon Etalon

Part Number: OP-2638-8311

Details: 8.311mm long,  ~5GHz, 1" diameter




16mm Solid Silicon Etalon

Part Number: OP-2638-16622

Details: 16.622mm long, ~2.6GHz, 1" diameter




41mm Solid Silicon Etalon

Part Number: OP-2638-41555

Details: 41.555mm long, ~1GHz, 1" diameter




83mm Solid Silicon Etalon

Part Number: OP-2638-83110

Details: 83.110mm long, ~0.5GHz, 1" diameter
