在线固定衰减器

Features

High precision

Excellent Stability and Reliability

Application

Optical communication systems

CATV Networks

Parameter

In Line

Wavelength (nm)

1310/1550 ± 50

Attenuation range (dB)

1dB, 3dB,5 dB, 7dB,10 dB, 15dB, 20dB,25dB,30dB etc.

Attenuation precision (dB)

±10% Attenuate Value

Pigtail Type

250um bare fiber

900um/2mm/3mm loose

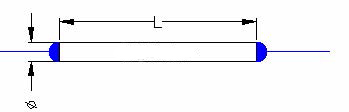

Package

Ф3×54

Ф3x54

Operating temperature (℃)

-20~75

Storage temperature (℃)

-40~85

FOA

Type

Attenuation(dB)

PigtailType

FiberType

Length

Connector

Package

I=In Line

1=1

3=3

5=5

10=10

15=15

20=20

XX: Specify

250=250umbarefiber

900=900um loosetube

2000=2mm  loose tube

3000=3mm  loose tube

1=SMF-28e

1= 1m

NE=None FA=FC/APC FC=FC/UPC

SA=SC/APC SC=SC/UPC LC=LC/UPC MU=MU/UPC

3x54
