熔锥型单模光纤倾斜滤波器

Specifications

Parameter

Unit

Premium

A Grade

Port Configuration

1×1

Bandwidth

nm

±15, ±20, ±40

Tilt Degree

Typ

dB

0.5, 1, 2, 3, 4, 5

Operating Power

Max

W

2

Operating Temperature

°C

-40 to +85

Storage Temperature

°C

-50 to +85

Package Type

mm

S7: Φ3×60 for bare fiber

Performance Table

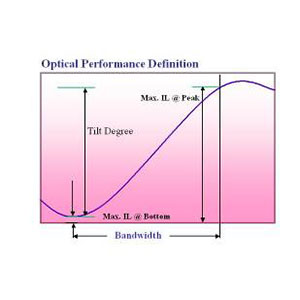

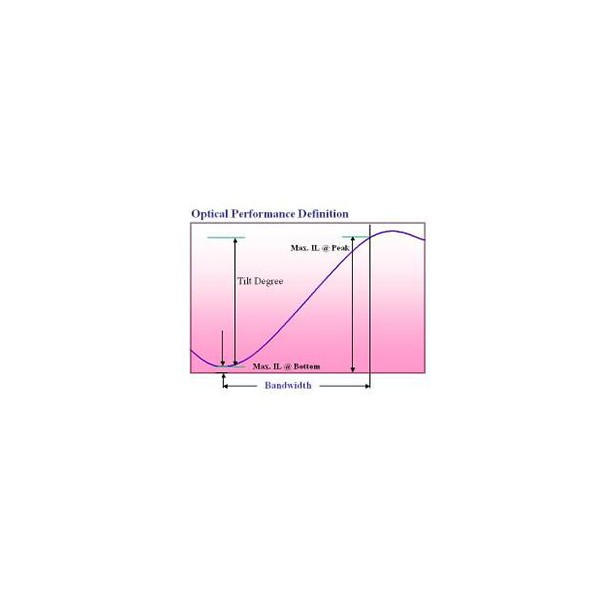

Tilt Degree (dB)

Maximum Insertion Loss (dB)

Premium

A Grade

Max IL (dB) at Bottom

Max IL (dB) at Peak

Tolerance (dB)

Max IL (dB) at Bottom

Max IL (dB) at Peak

Tolerance (dB)

0.5

0.1

0.6

±0.1

0.15

0.7

±0.2

1.0

0.2

1.15

±0.2

0.25

1.3

±0.3

2.0

0.3

2.3

±0.25

0.4

2.4

±0.5

3.0

0.5

3.4

±0.35

0.6

3.6

±0.6

4.0

0.6

4.5

±0.5

0.7

4.7

±0.7

5.0

0.7

5.6

±0.6

0.9

5.8

±0.8

Ordering Information

S

T

F

Wavelength

2=1590nm
3=1570nm
4=1550nm
5=1480nm
6=1475nm
7=1310nm
P=2000nm
S=Specify

Bandwidth

1=±15nm
2=±20nm
3=±30nm
4=±40nm

Tilt Degree

05=0.5dB
10=1.0dB
20=2.0dB
30=3.0dB
40=4.0dB
50=5.0dB

Tilt Direction

P=Positive
N=Negative

Grade

P=Premium
A=A Grade

Package

6=S7 with 250μm bare fiber

Fiber Type

1=SMF-28e

Fiber Length

0=0.5m
1=0.75m
2=1.0m
S=Specify

Connector

0=None
