1310nm在线起偏器

1310nm在线起偏器

1310nm在线起偏器

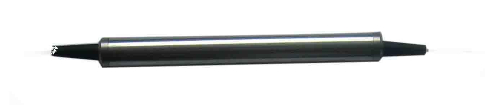

在线起偏器

      光纤起偏器是构成以偏振或者相位为主要检测特征的光纤系统的重要光无源器件之一。
      由于它重量轻、体积小, 与光纤系统的兼容性强和高消光比而倍受青睐, 现在已广泛用于光纤陀螺系统和光纤传感器中, 成为光纤系统产生线偏振光的关键的光无源器件。

The In-line Polarizer is designed to pass light with one specific polarization while blocking the other polarization.It can be used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instrumentations where high polarization extinction ratio is required.

 Model: PI131035

1310nm in-line polarizer, 125/250um PM fiber, ( typical E.R=35dB)

 Specification

Parameters

Unit

Values

Center Wavelength (λc)

nm

1310

Typ. Insertion Loss, 23 ℃

dB

0.3

Max. Insertion Loss, 23 ℃

dB

0.5

Min. Extinction Ratio, λc, 23 ℃

dB

30 or 35

Max. Optical Power (Continuous Wave)

mW

300

Min. Return Loss

dB

50

Operating Temperature

-5 to +70

Storage Temperature

-40 to +85

Package Dimensions

 在线起偏器
