格兰-泰勒偏振器

格兰-泰勒偏振器

型号:GT系列

品牌: leysop

分类:激光配件

参考报价: N/A

产地:英国

样本: 暂无


格兰-泰勒偏振器

特性:

  • 输出光束消光比: 100,000:1(见下方详细图解)
  • 空气间隙设计
  • 采用激光质量天然方解石制造(低散射)
  • 通光孔径内(不包括侧面端口)的波前畸变≤ λ/4
  • 在入射和出射面的表面质量为划痕-麻点20/10(侧端口处为80/50)
  • 波长范围350纳米-2.3微米(未镀膜)
  • 可镀宽带增透膜

格兰-泰勒偏振器能产生消光比超过100000:1的极纯净线偏振光,适用于在350纳米*-2.3微米波长范围内的激光束。也会有大量的反射光从偏振器的侧窗出射,包括o光和e光。因此,这种出射光并非纯正的偏振光,对于需要高质量和偏振光束的应用,只有透射e光可以使用。

偏振器的输入和输出面都是抛光成激光质量的20-10划痕-麻点表面光洁度,以将激光束或光场的透射e偏振成分的散射降到最少。o偏振成分通过68o角(波长相关)反射,再通过两个侧面端口之一从偏振器出射,使偏振器可以双向使用。逃逸光并不是纯正的偏振光,且侧面端口的划痕-麻点为80-50。

警告:方解石是一种温度敏感型晶体,如果暴露在热冲击下会破裂。因此在收到货物达到热平衡后(6 - 8 小时)再打开包装。

Glan-Taylor Calcite Air Spaced Polarizer

     A range of sizes comparable to our conventional Glan-Taylor polarizers is avaialble but as the prism sizes are larger, there is a modest premium on the price for a given aperture. Please contact us for further information.

Glan-Taylor Calcite Air Spaced Polarizer

The Glan-Taylor design produces a high extinction ratio polarizer with low reflection losses and a high power handling capability. It is therefore particularly useful for polarizing laser light, with the further advantages that there is no transmission deviation or offset, and that a wide spectral range can be polarized.

Product Specification

POLARIZER

GT10

GT12

GT15

GT18

GT20

APERTURE (mm)

10

12

15

18

20

WIDTH (mm)

11

13

17

20

22

HEIGHT (mm)

10

12

15

18

20

LENGTH (± 1.0mm)

11

15

18

21

24

TRANSMISSION RANGE

------------------- 0.25 - 2.5µm -------------------

EXTINCTION RATIO

10-5

10-5

10-5

10-6

10-6

TRANSMISSION UNCOATED

----------------------- 88% -----------------------

MAXIMUM BEAM DEVIATION

3 min

3 min

3 min

2 min

2 min

MAXIMUM OPTICAL POWER
PULSED

------------------- 200MW/cm2 --------------------

MAXIMUM OPTICAL POWER CW

-------------------- 300W/cm2 ---------------------

Diagram showing beam path through Glan-Taylor polarizer

Glan Taylor Polarizer With Orthogonal Output Side Exit Escape Windows

Glan-Taylor polariser with orthogonal side exit anglesBeam path through Glan-Taylor polarizer with orthogonal side exit angles

The Glan Taylor polarizer produces a high extinction ratio with low reflection losses and a high power handling capability.

Specification

Polarizer

GLBS 10

GLBS 12

GLBS 16

Aperture

10 mm

112 mm

15 mm

Spectral Range

--------------- 350 - 2500nm ---------------

Extinction Ratio

------------------- 10-5 -------------------

Maximum Beam Deviation

------------------- 3 min -------------------

Transmission

--- 88% (uncoated) 93-95% (ar-coated) ---

Surface Flatness

---------------- /6 @ NaD ----------------

Maximum Optical Power

-- 150W/cm2 (av) - 300MW/cm2 (pulsed) --



Glan-Taylor Polarizer With Brewster Angled Faces

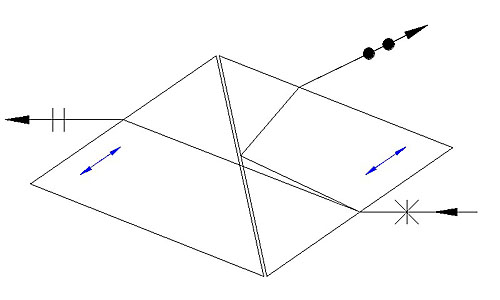

Glan-Taylor polarizer with Brewster cut faces

This special version of the Glan-Taylor polarizer is cut such that the P-polarization (extra-ordinary ray) intersects all four optical faces at Brewster's angle, thus ensuring a minimal insertion loss over a wide operating wavelength range. Transmission in fact is approaching 99% for the P-polarization and extinction ratio is exceptional, exceeding that of the more conventional cut Glan-Taylor.

Glan-Taylor Polarizing Beam Combiner

Glan-Taylor beam combining polarizer

This special version of the Glan-Taylor polarizer is cut such that the rejected S-polarized light exits in a direction parallel to the side exit face normal. More importantly, if the beam direction is reversed such that light is entering at the side face, it suffers no refraction at the surface and hence there is no dispersion of the position of the beam in the polarizer. This makes it possible to use this design for combining beams of orthogonal polarization and across a range of wavelengths without losing colinearity of the combined beams.
