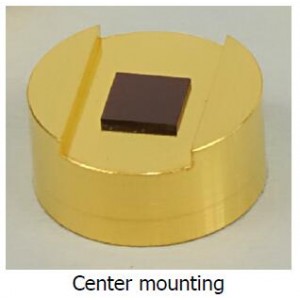

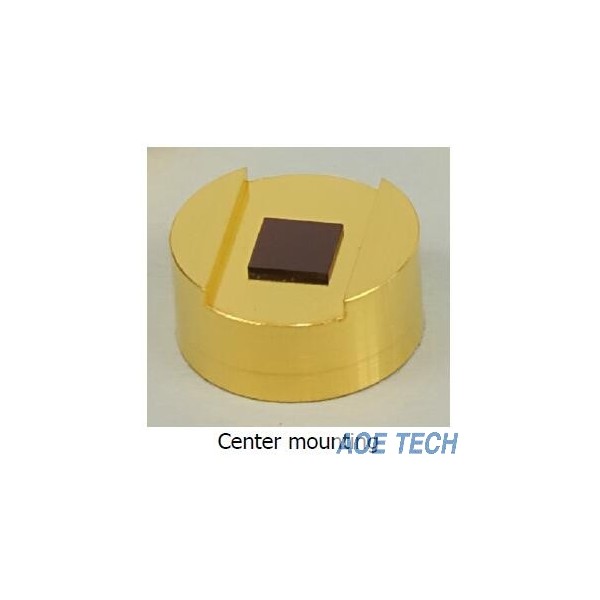

SAM半导体可饱和吸收镜1550nm (Saturable Absorber Mirror 1550nm)

SAM-saturable absorber mirror for laser mode locking

品牌:BATOP

型号:SAM-1550nm

产品简介

SAM半导体可饱和吸收镜1550nm (Saturable Absorber Mirror 1550nm)

SAM-saturable absorber mirror for laser mode locking

品牌:BATOP

型号:SAM-1550nm

BATOP 现已成为用于被动锁模激光器的可饱和吸收体的世界领先供应商。可饱和吸收产品集合了各式各样的不同的器件，从可饱和吸收镜(SESAM)，到可饱和输出镜(SOC)和用于透过应用的可饱和吸收体(SA)。迄今为止，可饱和吸收产品已经覆盖了800nm到2.6μm的常用激光波长范围。

SAM product list

Wavelength region 790 nm-830 nm: 800 nm

Wavelength region 910 nm-990 nm: 940 nm | 980 nm

Wavelength region 1020 nm-1150 nm: 1040 nm | 1064 nm | 1100 nm

Wavelength region 1110 nm-1320 nm: 1150 nm | 1300 nm

Wavelength region 1320 nm-1460 nm: 1340 nm | 1420 nm

Wavelength region 1470 nm-1660 nm: 1510 nm | 1550 nm | 1645 nm

Wavelength region 1900 nm-3200 nm: 2000 nm | 2150 nm | 2400 nm | 3000 nm

SAM 1550
laser wavelength	λ = 1550 nm
high reflection band (R>99%)	λ = 1500 .. 1600 nm
absorption	A0 = 1 - 50 %
relaxation time	τ = 2 - 12 ps

型号参数：

Part No. help	Delivery time	Description
SAM-1550-2-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 2 %, Δ R = 1.2 %, relaxation time ~ 2ps
SAM-1550-4-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 4 %, Δ R = 2.4 %, relaxation time ~ 2ps
SAM-1550-6-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 6 %, Δ R = 3.6 %, relaxation time ~ 2ps
SAM-1550-7-5ps-x	1 week	SAM: λ = 1550 nm, absorbance 7 %, Δ R = 4 %, relaxation time 5 ps
SAM-1550-8-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 8 %, Δ R = 5.5 %, relaxation time ~ 2ps
SAM-1550-10-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 10 %, Δ R = 6 %, relaxation time 2 ps
SAM-1550-10-5ps-x	1 week	SAM: λ = 1550 nm, absorbance 10 %, Δ R = 6 %, relaxation time 5 ps
SAM-1550-12-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 12 %, Δ R = 7 %, relaxation time 2 ps
SAM-1550-12-5ps-x	1 week	SAM: λ = 1550 nm, absorbance 12 %, Δ R = 7 %, relaxation time ~ 5 ps
SAM-1550-14-5ps-x	1 week	SAM: λ = 1550 nm, absorbance 14 %, Δ R = 8 %, relaxation time 5 ps
SAM-1550-16-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 16 %, Δ R = 9 %, relaxation time ~ 2 ps
SAM-1550-17-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 17 %, Δ R = 10 %, relaxation time 2 ps
SAM-1550-17-4ps-x	1 week	SAM: λ = 1550 nm, absorbance 17 %, Δ R = 10 %, relaxation time 4 ps
SAM-1550-20-4ps-x	1 week	SAM: λ = 1550 nm, absorbance 20 %, Δ R = 12 %, relaxation time 4 ps
SAM-1550-21-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 21 %, Δ R = 13 %, relaxation time ~ 2 ps
SAM-1550-25-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 25 %, Δ R = 15 %, relaxation time 2 ps
SAM-1550-26-5ps-x	1 week	SAM: λ = 1550 nm, absorbance 26 %, Δ R = 16 %, relaxation time 5 ps
SAM-1550-32-4ps-x	1 week	SAM: λ = 1550 nm, absorbance 32 %, Δ R = 20 %, relaxation time 4 ps
SAM-1550-33-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 33 %, Δ R = 19 %, relaxation time 2 ps
SAM-1550-55-2ps-x	1 week	SAM: λ = 1550 nm, absorbance 55 %, Δ R = 36 %, relaxation time ~ 2 ps
PHS	1 week	passive heat sink for fiber coupled SAM
