AS GE石英石光纤

AS GE石英石光纤

AS GE quartzquartz Fibers

Features

·         Broad useful spectral transmission range

·         Specialty coatings available for high temperatures, high vacuum and harsh chemicals environments

·         Biocompatible materials

·         Sterilizaable by ETO, steam, e-beam, gamma radiation

·         Radiation resistant

·         Laser damage resistant

Properties

·         Core/clad ratio: 1.1, 1.2, 1.4

·         Numerical aperture: 0.28 ... 0,4

·         Operation wavelength range: 500nm to 2600 nm

·         Proof test level (bend method): 70 kpsi

·         Bend radius: momentary 100 times the fiber radius long term 600 times the fiber radius

·         low NA ≤ 0,35

·         high NA ≤ 0,4

·         Diameter see AS...IR fibers

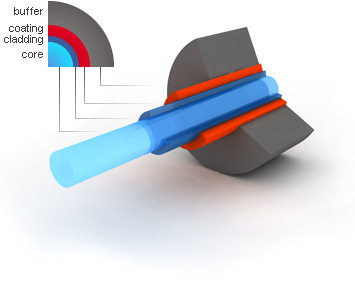

Fiber Design

·         GE-doped fused silica core (low OH-)

·         Fluorine doped fused silica cladding

·         Acrylate coating (-40°C to 85°C)

·         Silicone resin coating (-40°C to 180°C)

·         Polyimide coating (-190°C to 385°C)

Buffer

·         Nylon (-40°C to 100°C)

·         ETFE (-200°C to 150°C)

·         Acrylate (-40°C to 85°C)

Options

·         Core/clad ratios 1.15,1.30, 1,4

·         Numerical apertures 0.3 ... 0,4

·         Metal coating

·         Fiber bundles

·         Tapered fibers

·         Connectors (SMA, FC/PC, ST, DIN)

·         AS-Fiber cables

high    temperatur acrylate coating (-40°C to 200°C)
