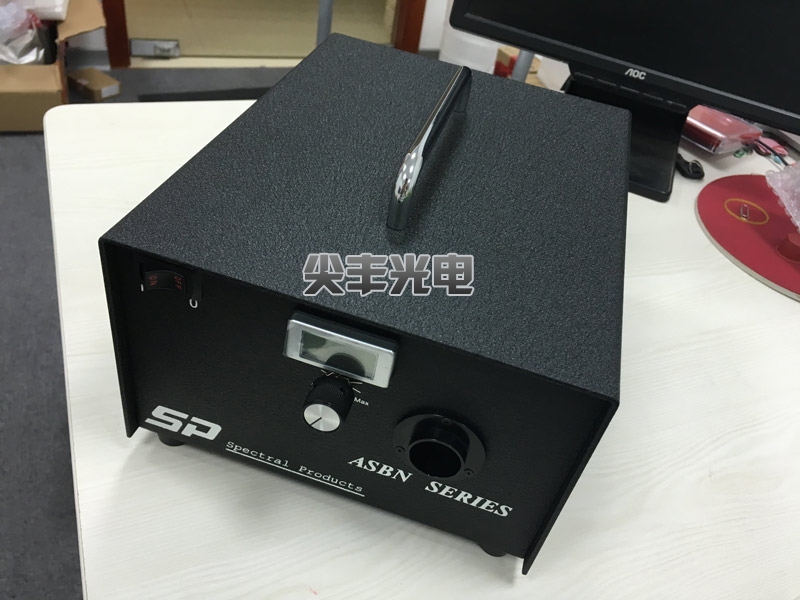

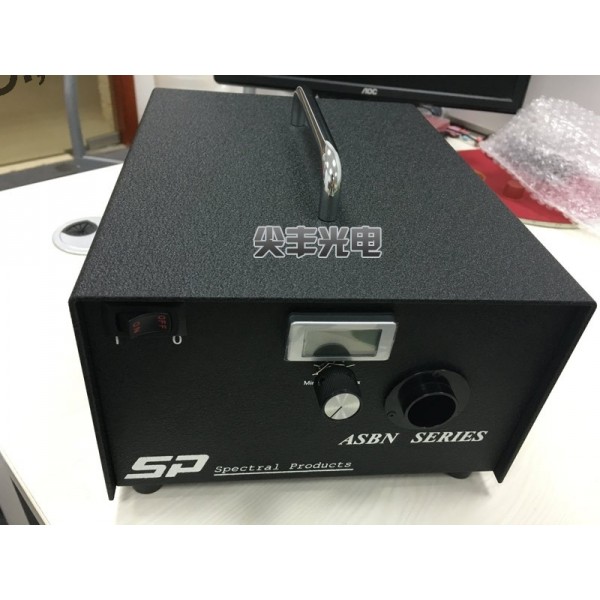

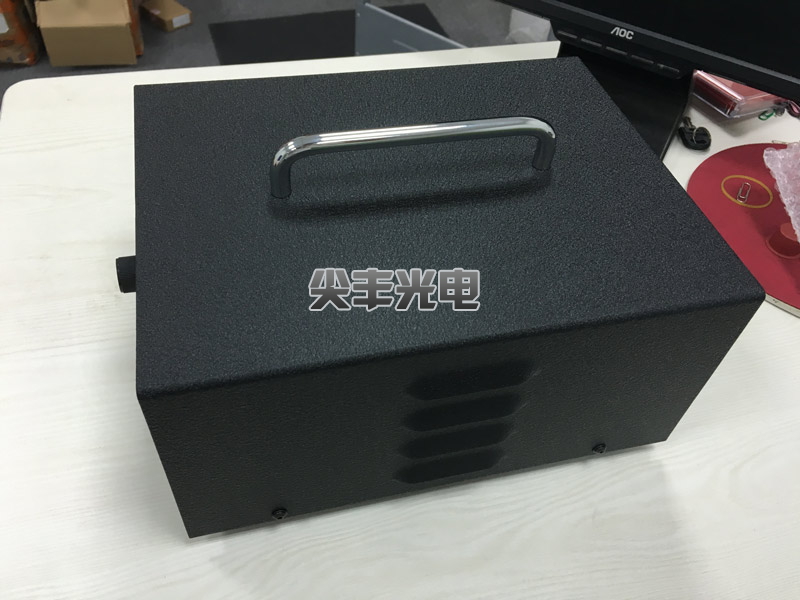

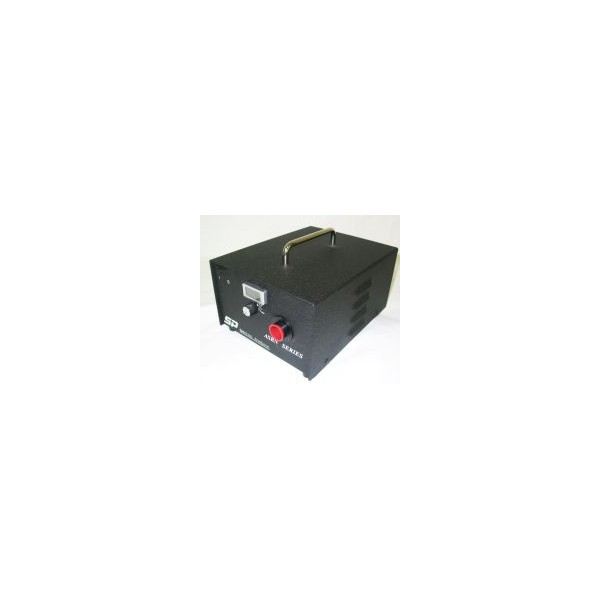

ASBN-W系列高功率卤钨灯

ASBN-W系列高功率卤钨灯系列在50W/75W/100W/150w具有齐全的光源组件，可以发出300nm至2600nm波长的光

型号：ASBN-W系列	品牌： Spectralproducts
分类：高功率卤钨灯光源系列	参考报价： N/A
产地：美国	样本：产品说明

产品简介
技术文档

ASBN-W系列高功率卤钨灯

美国SP公司是世界光电技术仪器及产品的领导者，作为CVI的子公司，其光谱产品的研发有着非常丰富的经验及创新理念。产品范围覆盖:分光光度计、单色仪、光谱仪、摄谱仪、光谱分析仪、探测系统、光源。

ASBN-W系列高功率卤钨灯系列在50W/75W/100W/150w具有齐全的光源组件，可以发出300nm至2600nm波长的光

高功率卤钨灯光源

Provides optimal illumination to monochromators
Offers excellent color temperature stability
Features adjustable constant voltage power supply
Contains focusable fused silica lens and UV protected Al coated mirror assembly

型号：

ASB-W-030: 30W 卤钨灯

ASBN-W-050: 50W卤钨灯

ASBN-W-075: 75W卤钨灯

ASBN-W-100-L: 100W低色温卤钨灯

ASBN-W-100-H: 100W高色温卤钨灯

ASBN-W-150-L: 150W低色温卤钨灯

特点：

各种可变单色光输出，选择从近紫外（300nm）到近红外（2.6μm）
计算机控制（与单色仪配合）
双向扫描，扫描单位包括nm，A、cm^-1、ev
可以配置成光纤输出，也可准直输出
标准设计允许改装
与SP的产品耦合

是与您单色仪最匹配的光源，也可以选择我们的单色仪。

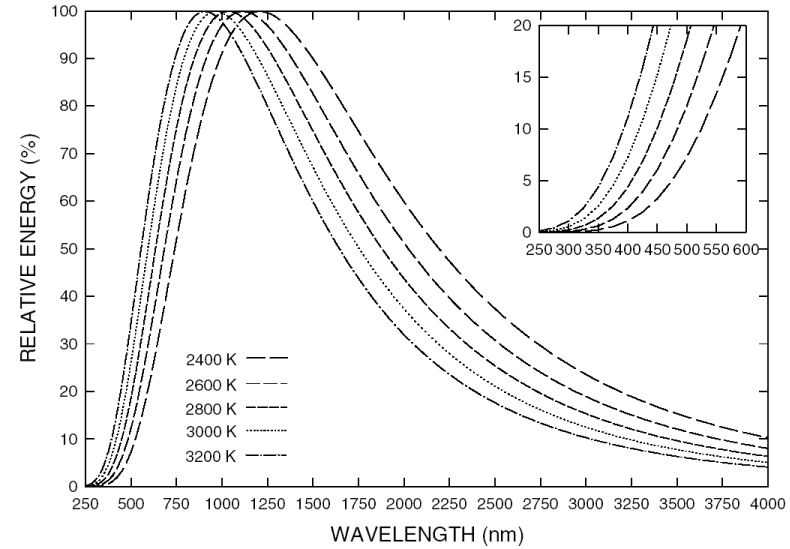

The ASBN-W high power tungsten-halogen series are complete light source assemblies with 50W/75W/100W/150W tungsten-halogen lamps that emit in the 300 to 2600 nanometer (nm) wavelength region. They have been designed to transfer the maximum possible illumination from a tungsten-halogen lamp to Digikröm monochromators. The tungsten-halogen lamps of the ASBN-W high power series are near blackbody sources of light with fused silica envelopes around the lamp filaments.

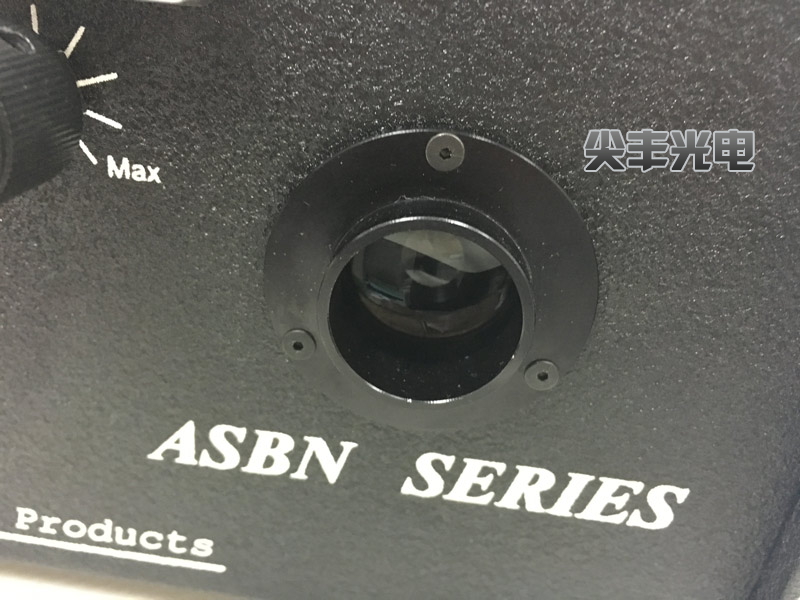

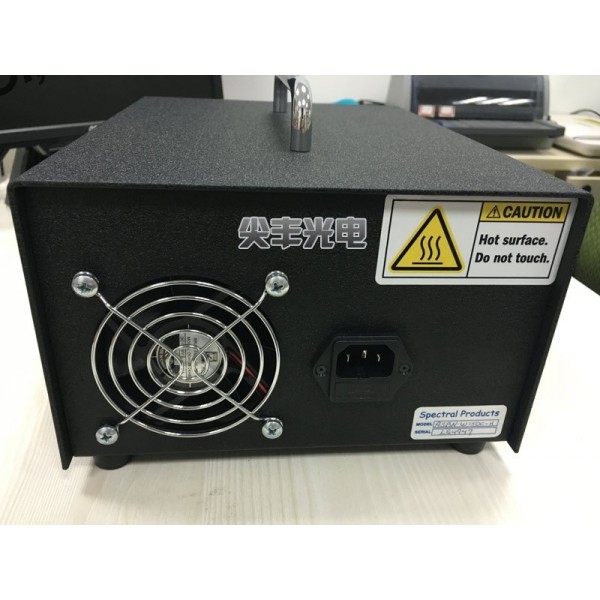

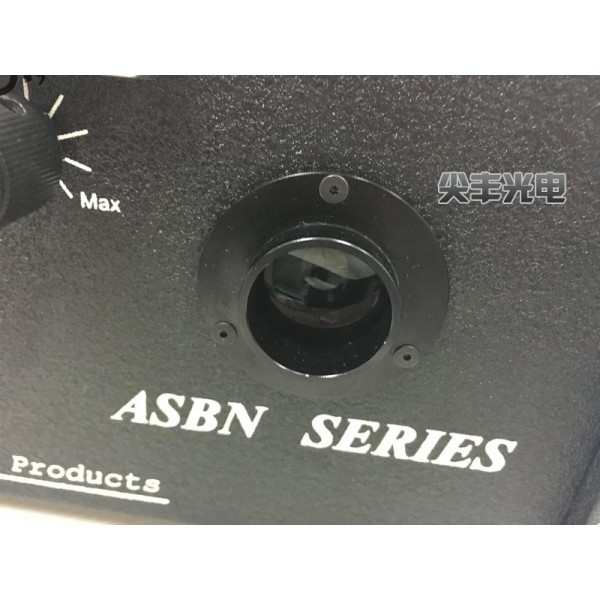

The housing contains a 1" UV grade fused silica lens (f#/1.2) and UV protected Al coated mirror (f = 12.5mm) assembly selected for optimum coupling to the monochromator or the fiber, a regulated power supply and a cooling fan. The power supply provided with the ASBN-W high power series is a DC voltage regulated power supply.
Please click here to view the manual for this light source.

Feature	Value
Lamp:	Power input	Light output	Color Temp.	Life Time	Filament size
	50W	900 lumens	3,000 °K	2,000 hours	4.2mm X 2.5mm
	75W	1,400 lumens	3,000 °K	2,000 hours	5.0mm X 1.6mm
	100W-H	3,000 lumens	3,400 °K	50 hours	5.3mm X 3.0mm
	100W-L	2,000 lumens	3,000 °K	2,000 hours	5.2mm X 2.3mm
	150W-H	6,000 lumens	3,400 °K	50 hours	6.2mm X 3.1mm
	150W-L	5,000 lumens	3,200 °K	300 hours	5.8mm X 3.0mm
Housing:	Air cooling fan with a regulated power supply, 1" UV grade focusable fused silica collection lens (f#/1.2), 1" UV protected Al coated mirror (f = 12.5mm) Dimension: 8" X 10" X 5"
Power Input:	Input Voltage: 85-264 VAC (110V/220V compatible) Input Frequency: 47-63Hz Inrush Current: 30A/100V, 40A/200V Over-voltage Protection: Clamp, 115-135% Current Limit: 105-150% typ, Self-reset Fold back Safety: UL / TUV / CE Oper. Temp.: 0 to 50 °C
Power Output:	Type: constant current DC VDC: 12V (24V for 150W) Max. Current: 12.5A (8.4A for 150W) Ripple/Noise (20MHz BW): 100mV Pk-Pk, typ. Regulation: ±0.5%, typ.
Warranty:	One year

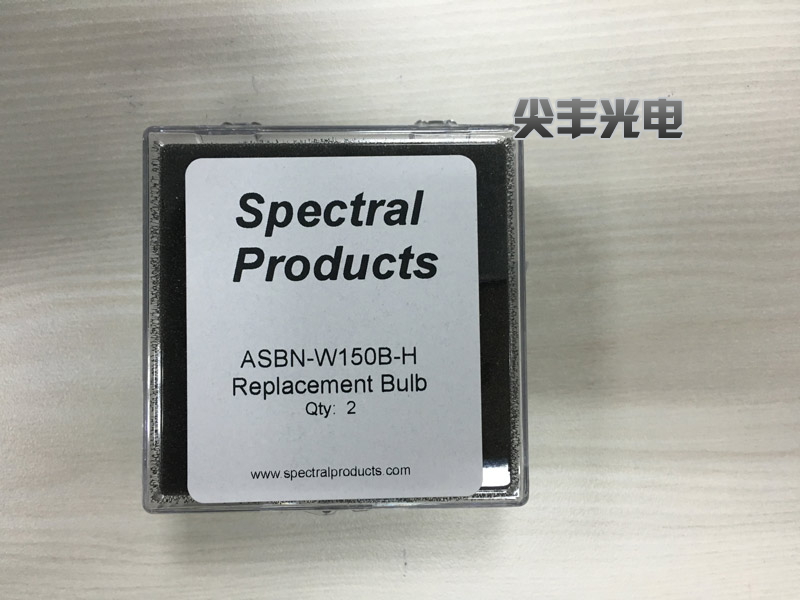

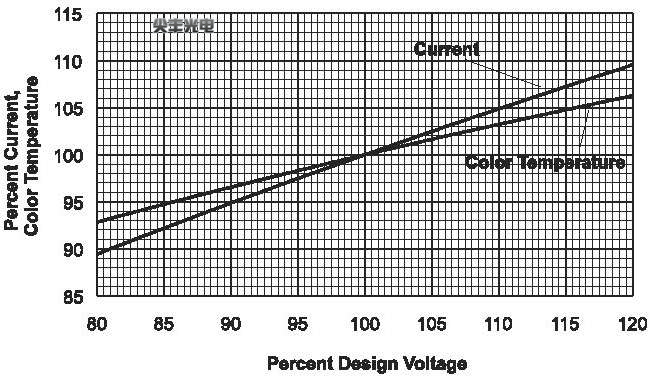

Options:	Spare lamp: ASBN-WB-050/075/100-H/100-L/150 Input power controller: ASBN-W-PV (including voltage indicator) Needed to be specify the fiber coupling or collimated output Focusing lens set for monochromator: ASBN-W-FL (1" UV fused silica lens
