375nm半导体连续激光器

375nm半导体连续激光器

375nm半导体连续激光器

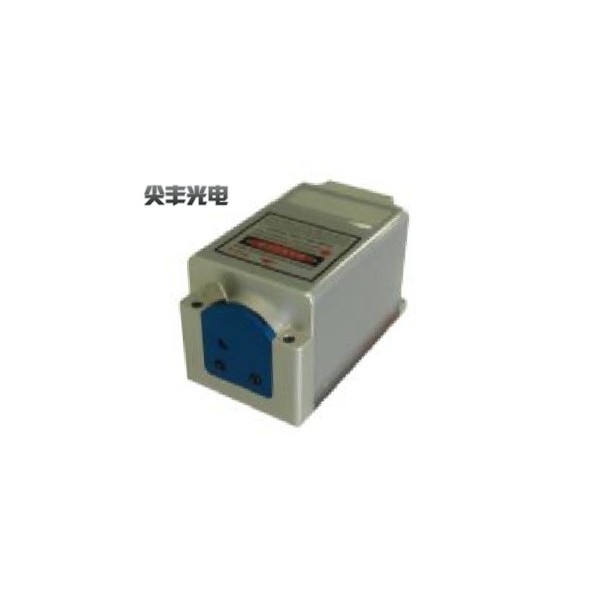

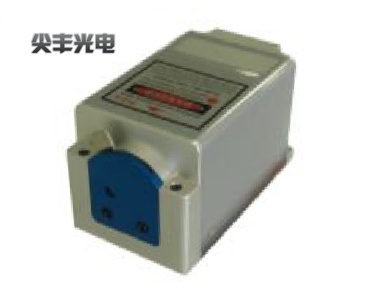

DIODE XS SERIES LASER AT 375nm

      尖丰光电提供的375nm的XS系列激光二极管模块，具有高稳定性、窄线宽、光斑质量好、寿命长且易于操作等特点。超小体积封装，是OEM设备、光学系统设计与集成以及终端用户研发的绝佳选择。

      Diode XS series laser module  at 375nm, features with integrated electronics, plug and play, miniaturization, standardization of interface advantages of continuous diode lasers. It is the ideal solution for a wide range of applications including life sciences, environmental monitoring, inspection and machine vision.

 SPECIFICATIONS:

Wavelength (nm)

375±5

Operating mode

CW

Output power (mW)

>1, 2, 3, …,50

Power stability (rms, over 4 hours)

<1%, <3%

Transverse mode

Near TEM00

Noise of amplitude(rms,20Hz~20MHz)

<1%(<0.5%, optional)

M2 factor

<1.5

Beam diameter at the aperture (1/e2,mm)

~1.0

Beam divergence, full angle (mrad)

<1.0

Polarization ratio

>50:1 (>100:1, optional)

Horizontal±5 degree (Vertical Optional)

Warm-up time (minutes)

<5

Beam height from base plate (mm)

19

Operating temperature (℃)

10~35

Input voltage

+12VDC

Expected lifetime (hours)

10000

Warranty

1 year

MDL-XS-375

Optional Power Supply

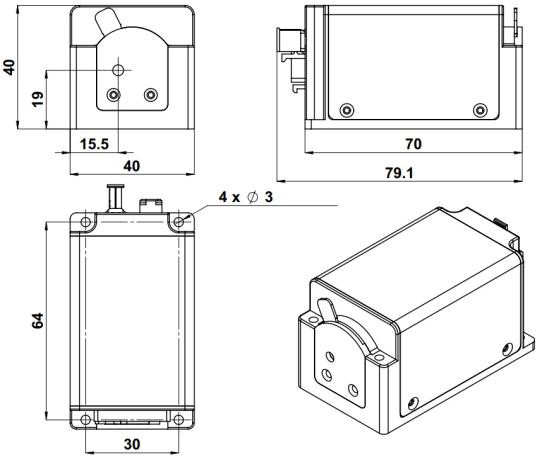

DIODE XS SERIES LASER AT 375nm

79.1(L) ×40(W) ×40 (H) mm3,    0.2kg

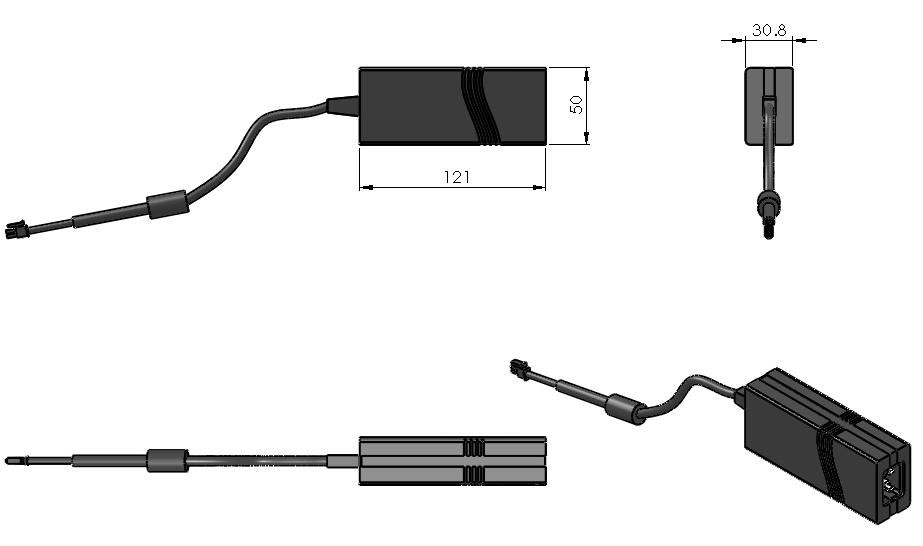

DIODE XS SERIES LASER AT 375nm



121(L) ×50(W) ×30.8 (H) mm3,    0.3kg
