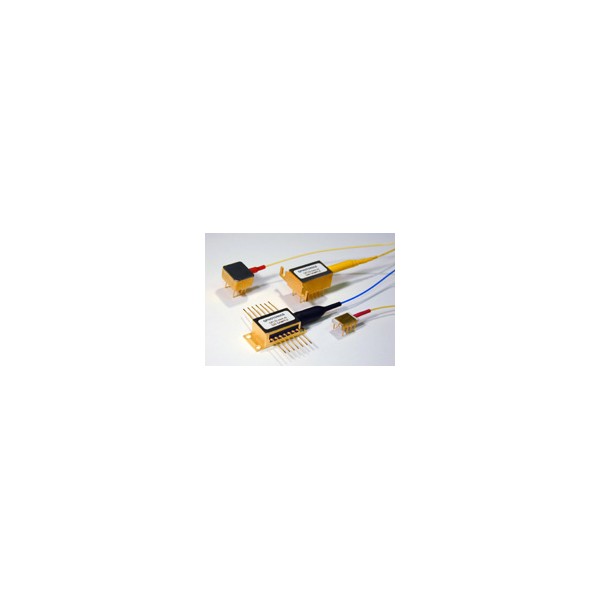

Single Mode Laser Diodes

Description:

• Fiber coupled Fabry Perot (FP) laser diodes
• Fiber coupled wavelength-stabilized laser diodes with fiber Bragg grating (FBG) or distributed feedback (DFB)
• CW or pulsed operation
• Wavelength range 670-1550nm
• 14-pin DIL or 14-pin butterfly packages with built-in thermistor, thermoelectric cooler, and photodiode.
• Mini-DIL packages with built-in monitor photodiode
• Single-mode fiber pigtails
• Optional FC/PC or FC/APC connector

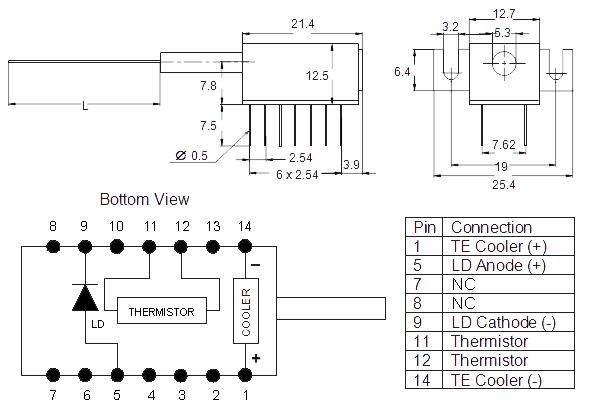

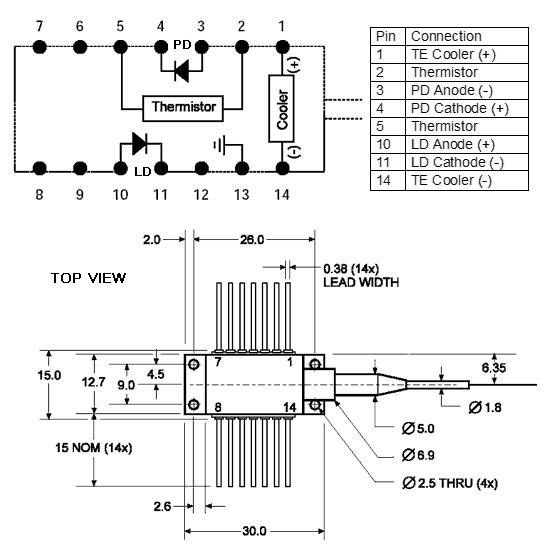

The package dimensions of the structure:

Or
