Microchip激光芯片1064nm

The Microchip (MC) consists of a saturable absorber bonded with a Nd:YVO₄ laser crystal. It can be used to generate pulsed laser radiation at 1064 nm wavelength if pumped with a diode laser at 808 nm using passively Q-switching.

The main advantage of a laser build with a microchip is the pump power dependent repetition rate with fixed pulse duration and pulse energy. By simply increasing the pump power at 808 nm the repetition rate - and consequently the average output power - will be increased proportionally starting from the laser threshold. The laser output is linear polarized.

MC - Microchip in reflection mode
MCT - Microchip in transmission mode

应用领域

微加工
光探测和测距（激光雷达）
精密测量
频率转换

MCT – 传输模式微芯片

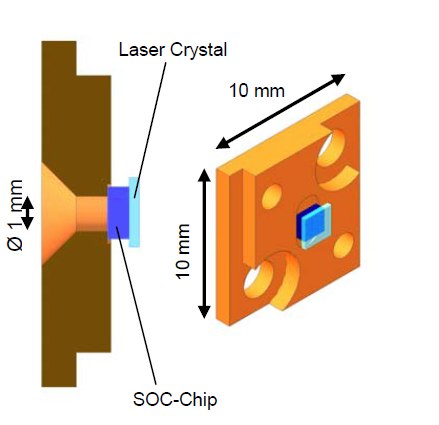

The Nd:YVO₄ laser crystal is bonded with a saturable output coupler (SOC).
The laser output beam is in the same direction as the pump beam.
The laser output is linear polarized.

Part No.	Delivery time	Description
MCT-1064-90ps	1 week	Microchip in transmission mode λ = 1064 nm, pulse duration ~ 90 ps, pulse energy ~ 100 nJ, repetition rate 20 kHz - 400 kHz pump wavelength 808 nm
MCT-1064-220ps	1 week	Microchip in transmission mode λ = 1064 nm, pulse duration ~ 220 ps, pulse energy ~ 160 nJ, repetition rate 20 kHz - 400 kHz pump wavelength 808 nm

MCT-1064-90ps

Optical Pump Parameters

Parameter at T=25°C	Min.	Typ.	Max.
Wavelength	806 nm	808 nm	810 nm
Optical Pump Power Pp	70 mW	150 mW-200 mW	300 mW
Pump Spot Diameter	25 µm	40 µm	100 µm
Fluorescent Lifetime		35 µs (3%)
Pump Absorption @ 808nm	85%	90%	97,5%
Pump Power Density	5.5 KW/cm2		24 KW/cm2*

Lasing performance with 40μm pump spot size at 25°C

Parameter at T=25°C	Min.	Typ.	Max.

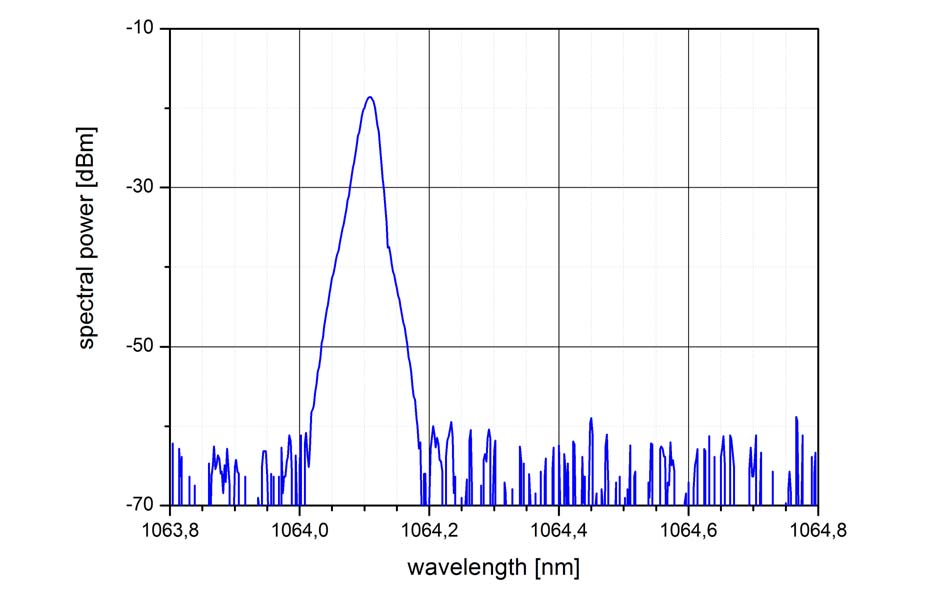

Laser Emission Wavelength	1064.0nm	1064.3nm	1064.6nm
Laser Wavelength Drift		45 pm/100mW**
Beam Waist Diameter	40 µm		100 µm
M2	1.1	1.3	1.5
Pulse Energy	75 nJ	90 nJ	105 nJ

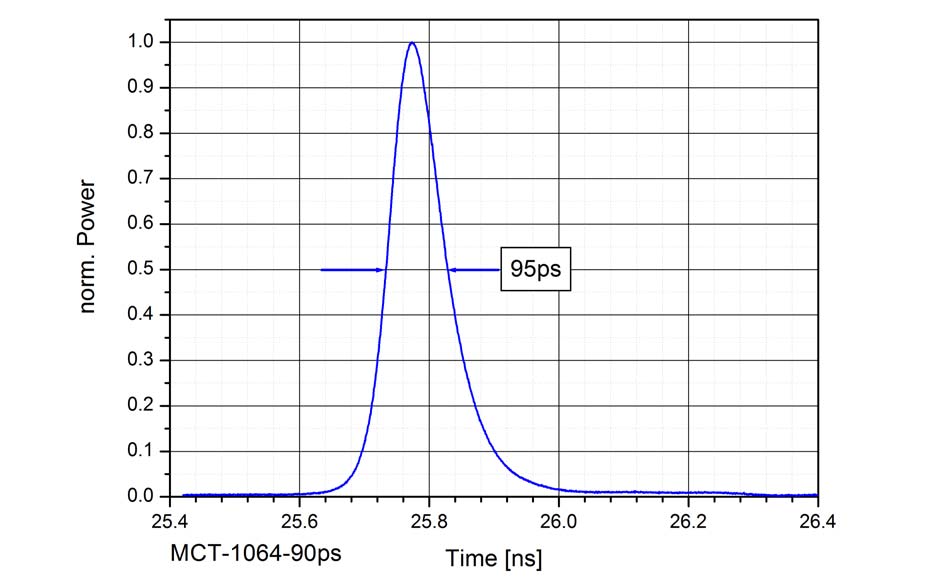

Pulse Duration	80 ps	90 ps	110 ps
Differential Efficiency	10%	20%	25%
Lasing Threshold	70 mW	90 mW	110 mW
Polarization Extinction Ratio		30

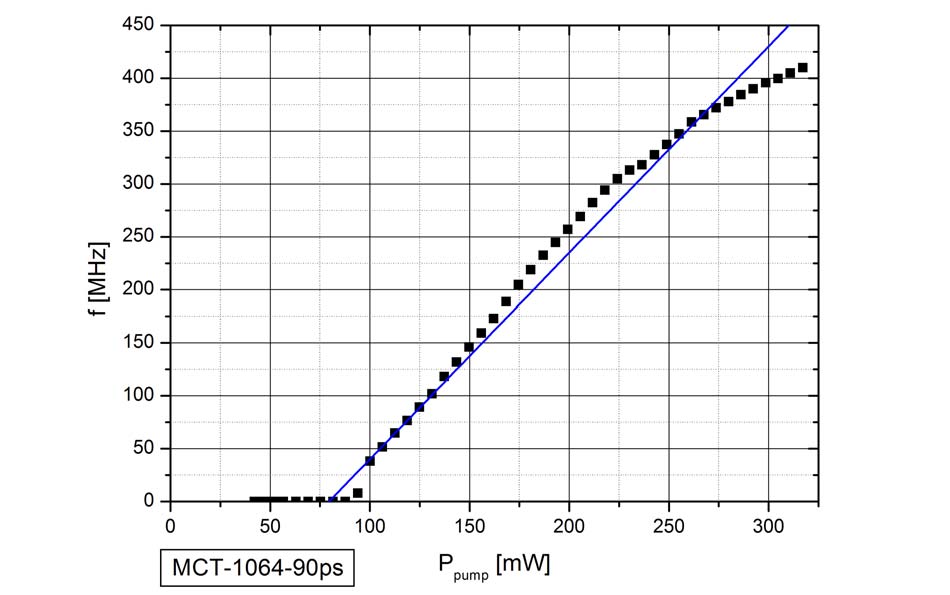

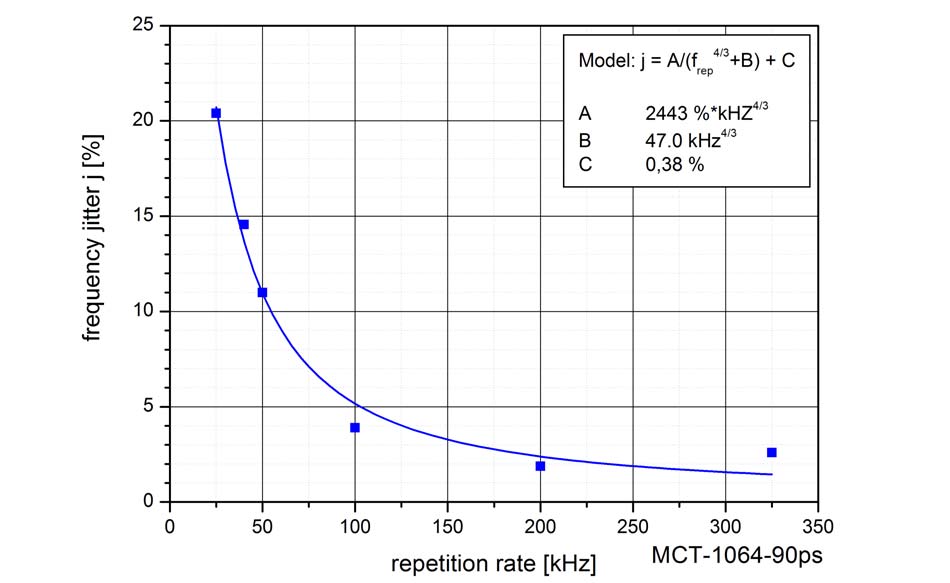

frep	20 kHz		400 kHz

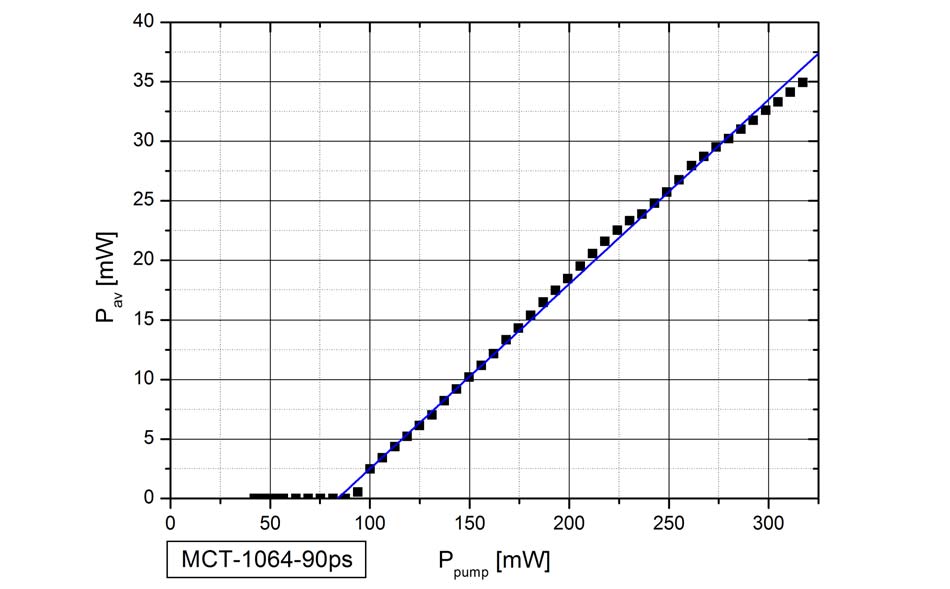

Pp (150mW)	10 mW	12 mW	14 mW
Pp (200mW)	17 mW	20 mW	23 mW
