微结构光纤

Microstructured-fibers

微结构光纤

Microstructured-fibers

Features

·                     High numerical aperture possible

·                     Radiation resistant

·                     High Temperature resistant

·                     (Biocompatible Material)

·                     (Sterilizable by ETO, e-beam, gamma radiation)

·                     Excellent chemical and abrasion resistance

Properties

·                     Step Index Profile

·                     Wavelength dependent numerical aperture 0.5 … 0.9

·                     Operation wavelength range IR: 400nm … 2400nm

·                     core diameter 5µm ... 600µm

Fiber Design

·                     Pure fused silica (low OH-)

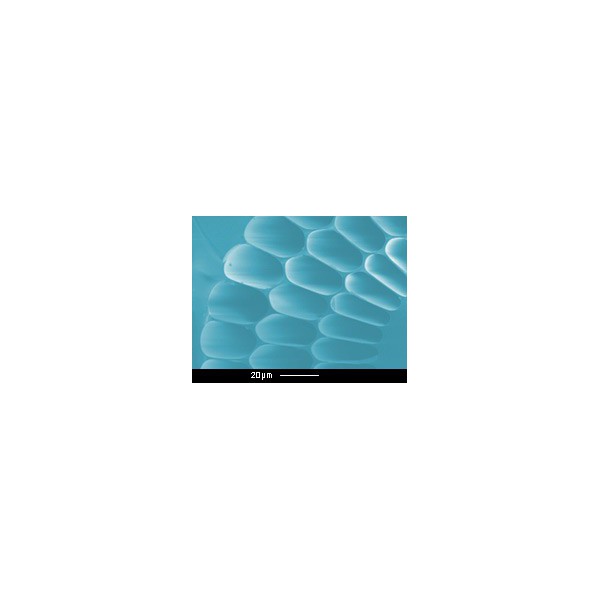

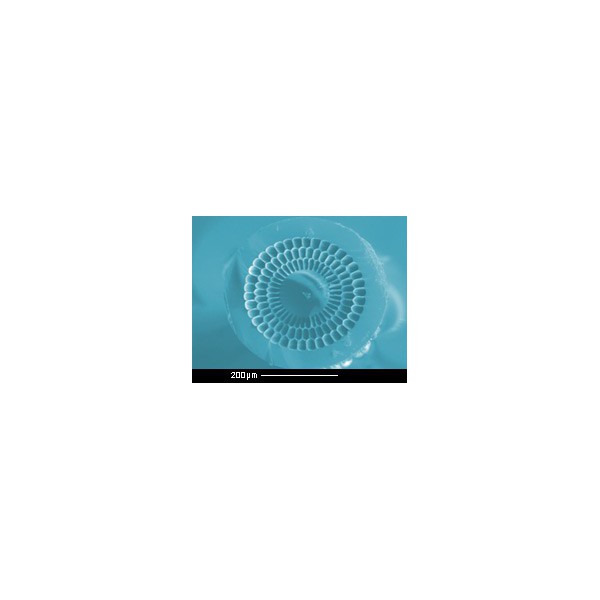

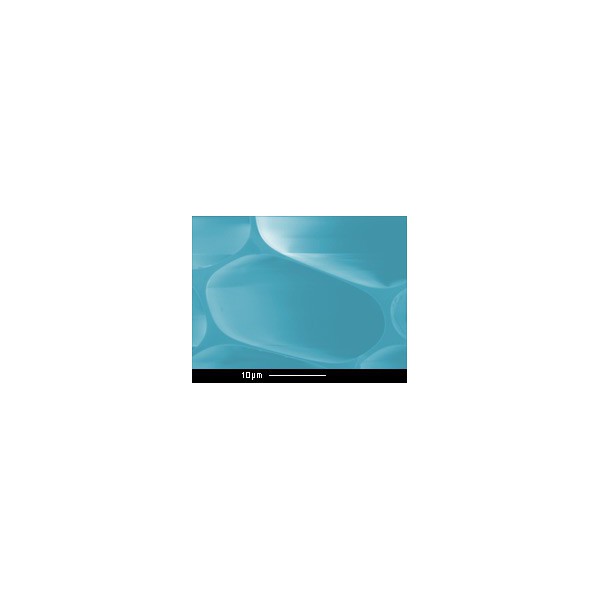

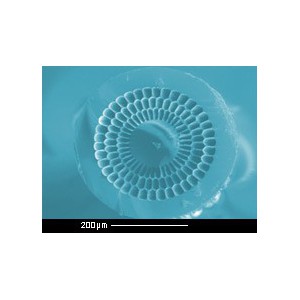

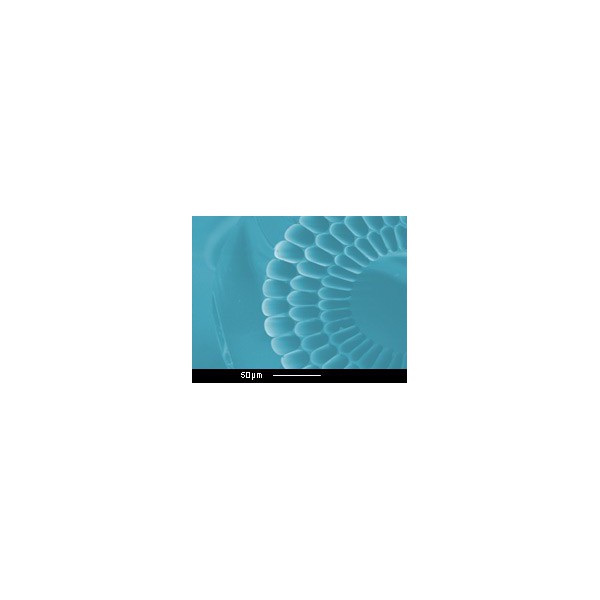

·                     microstructured fused silica cladding

·                     Acrylate coating (-40°C to 85°C)

·                     Silicone resin coating (-40°C to 180°C)

·                     Polyimide coating (-190°C to 385°C)

Options

·                     Numerical apertures 0.5 … 0.9

·                     Metal coating

·                     Connectors with sealed ends (SMA, FC/PC, ST, DIN)

·                     AS-Fiber cables

·                     high temperatur acrylate -40°C to 200°C

·                     Buffer Options:

  •  Nylon (-40°C to 100°C)
  •  ETFE (-200°C to 150°C)
