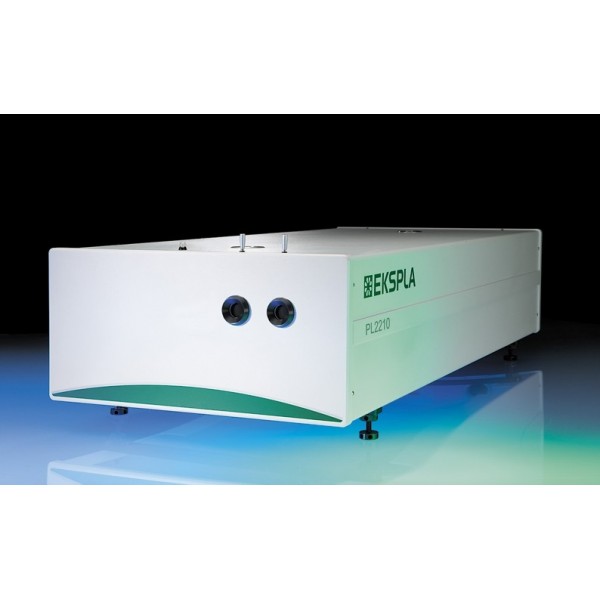

pl2210系列二极管泵浦皮秒Nd:YAG激光器

pl2210系列二极管泵浦皮秒Nd:YAG激光器

pl2210系列二极管泵浦皮秒Nd:YAG激光器

产品简介:

     短脉宽、高能量,高达2 kHz的重复率和优良的脉冲稳定性进行pl2210系列二极管泵浦皮秒激光器的许多应用的首选,如材料加工、激光光谱学、光学参量发生器泵和其他任务。

产品特点:

  1. 高脉冲能量
  2. 二极管泵浦固体设计
  3. 空气冷却,不需要外部供水
  4. 交钥匙工程
  5. 维护成本低
  6. 可选条纹相机触发脉冲与< 10的均方根抖动
  7. 遥控板
  8. 通过USB接口与PC机提供的控制
  9. LabVIEW™ drivers
  10. 可选的温度稳定性,第二,第三,第四谐波发生器

产品应用:

  1. 时间分辨荧光,泵浦-探测光谱
  2. OPG/OPA/OPO泵浦
  3. 其他光谱和非线性光学中的应用
  4. 激光遥感


Specifications 1)

 Model

PL2210

PL2210A

PL2210B

PL2210B-TR

PL2210C

 Output energy

 at 1064 nm

 0.4 mJ

0.9 mJ

2.5  mJ

2.5 mJ at 1 kHz
5 W at 88 MHz

2.5 mJ / 5 mJ

 at 532 nm2)

 0.2 mJ

0.45  mJ

1.3  mJ

-

1.3 mJ / 2.5 mJ

 at 355 nm3)

 0.11 mJ

 0.3 mJ

 0.8 mJ

-

0.8 mJ / 1.3 mJ

 at 266 nm4)

 0.05 mJ

 0.15 mJ

 0.5 mJ

-

0.5 mJ / 0.8 mJ

 Pulse energy stability (Std. Dev)5)

 at 1064 nm

 0.5 %

 at 532 nm

 0.8 %

#colspan#

  at 355 nm

 1 %

  at 266 nm

 2.5 %

 Pulse duration (FWHM) 6)

 25±2 ps

25±2 ps

80±8 ps

100±10 ps

25±2 ps / 80±8 ps

 Pulse duration stability 7)

 ±1 ps

±1 ps

±3 ps

±3 ps

±1 ps / ±3 ps

 Pulse repetition rate 8)

 1 or 2 kHz

1 kHz

1 kHz / 1 MHz

1 kHz

 Triggering mode

internal/external

 Typical SYNC OUT pulse delay9) 10)

 -500...50 ns

 SYNC OUT pulse jitter (Std. Dev)

 <0.1 ns rms

 Spatial mode11)

 TEM00

 Beam divergence12)

 <1.6 mrad

 Beam diameter 13)

 ~3 mm

 Beam pointing stability 14)

 <30 μrad

 Pre-pulse contrast

 >200:1

 Polarization

 linear, >100:1

Physical characteristics

 Laser head size (W x L x H), mm 15)

455 x 1035 x 242

455x1235x242 mm

 Power supply size (W x L x H), mm

 365 x392 x 290

475 x 460 x 290

365x285x360 mm

Operating requirements

 Water service

not required, air cooled

 Relative humidity

 10-80 % (non condensing)

 Ambient temperature

 22 ± 2 °C

 power requirements

 100-240 VAC, single phase, 50/60 Hz

 Power consumption 16)

 <0.5 kW

 <1 kW

 <1 kW

 <2 kW

 <1.5 kW



1) Due to continuous improvement, all specifications are subject to change without notice. Parameters marked typical are not specifications. They are indications of typical performance and will vary with each unit we manufacture. Unless stated otherwise, all specifications are measured at 1064 nm.
2) For PL2210x-SH and PL22210x-SH/FH options. Outputs are not simultaneous. Please inquire for pulse energies for other harmonic generator options.
3) For PL2210x-TH option. Outputs are not simultaneous. Please inquire for pulse energies for other harmonic generator options.
4) For PL2210x-SH/FH option. Outputs are not simultaneous. Please inquire for pulse energies for other harmonic generator options.
5) Averaged from 300 pulses at 1 kHz pulse repetition rate.
6) Optional 80±8 ps duration.
7) Measured over 1 hour period when ambient temperature variation is less than ±2 °C.
8) Should be specified when ordering. Inquire for custom pulse repetition rates.
9) In respect to optical pulse. <10 ps rms jitter is provided with PRETRIG option.
10) SYNC OUT lead or delay can be adjusted with 0.25 ns steps in specified range.
11) Gaussian fit >90%.
12) Full angle measured at the 1/e² point at 1064 nm .
13) Beam diameter is measured at 1064 nm at the 1/e² point.
14) Rms value measured from 300 shots.
15) 455×1235×250 mm (W×L×H) laser head size might be required for some optional configurations.
16) At 1 kHz pulse repetition rate.

Options

  • Option PRETRIG provides low jitter pulse for streak camera triggering with lead/delay in -150...150 μs range and <10 ps rms jitter.
  • Option P80 provides 80±8 ps output pulse duration. Main specifications:

Model

PL2210

PL2210A

Pulse energy 1)

0.7 mJ

1.2 mJ

 Pulse duration (FWHM)

<80 ps

*At 1064 nm

  • Option PC allows reduction of the pulse repetition rate of the PL2210 series laser by integer numbers. Single shot mode is also possible. In addition, the –PC option reduces the low-intensity quasi-CW background that is present at laser output at 1064 nm wavelength. Please note that the output of fundamental wavelength and harmonics will be reduced by approx. 20% with installation of the –PC option.
