单模光纤

单模光纤

Features

l   Single mode transmission at a range of standard wavelength between 400 nm and 1550 nm

l   All fibers available with 125 µm diameter to allow the use of standard connectors

l   High NA fibers available

l   Specialty coatings available for high temperutres, high vacuum and harsh chemicals environments

l   Radiation resistant type available -Standard communication fibers available

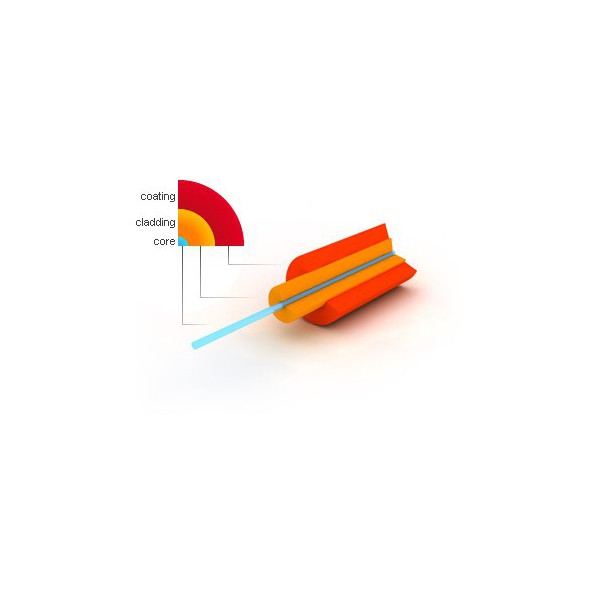

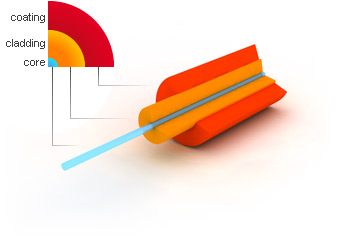

Fiber Design

l   Doped fused silica core

l   Pure fused silica cladding

l   Dual layer Acrylate coating ( -40°C to 85°C )

l   Polyimide coating ( - 190°C to 385°C)

Buffer optional

l   Silicone

l   Acrylat

l   Hard Clad

l   Polyimide

Options

l   Numerical apertures 0.10 to 0.35

l   Metal coating (-190°C to 750°C)

l   Connectors (DIN, FC/PC, ST, SMA)

l   Single-mode fiber cables

l   80µm cladding

l   high NA ≤ 0,2

l  high temperature acrylate (-40°C to 200°C)
