偏振不敏感光隔离器

1064nm偏振不敏感光隔离器

1064nm偏振不敏感光隔离器Polarization Insensitive Optical Circulator

 偏振不敏感光隔离器

The Optical Circulator is a compact, high performance lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. The component provides high isolation, low insertion loss, low PDL, low PMD and excellent environmental stability.



Model: SMCIR1064

1064nm polarization independent fiber ciculator ( 3 port, HI1060 fiber, 1m bare fiber)



Specifications

Parameter

Unit

Value

Center Wavelength (λc)

Um

1064

Operating Wavelength Range

um

λc ± 5

Typ. Insertion Loss, 23 ℃

dB

2

Max. Insertion Loss, 23 ℃

dB

2.2

Min. Isolation,λc, 23 ℃, all polarization states

dB

20

Min. Crosstalk

dB

45

Min. Return Loss

dB

50

Max. Polarization Dependent Loss, 23 ℃

dB

0.2

Max. Polarization Mode Dispersion

ps

0.1

Max. Optical Power (Continuous Wave)

mw

300

Max. Tensile Load

N

5

Operating Temperature

℃

0 to +30

Storage Temperature

℃

-40 to +85

Fiber Type



HI 1060 fiber

Package Dimensions

mm

(L) 34 × (W) 8.4 × (H) 8.4

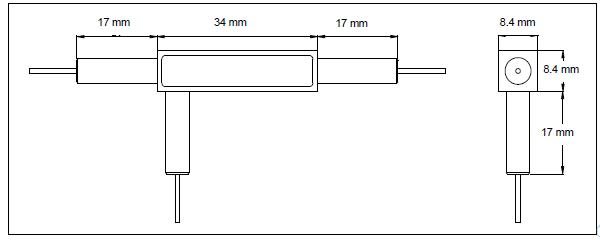

Package Dimensions

 偏振不敏感光隔离器
