1310nm, 1480nm or 1550nm偏振无关隔离器
1310nm, 1480nm or 1550nm偏振无关隔离器
型号:PIIS |
品牌: 尖丰光电 |
分类:光隔离器 |
参考报价: N/A |
产地:上海 |
1310nm, 1480nm or 1550nm偏振无关隔离器
型号:PIIS |
品牌: 尖丰光电 |
分类:光隔离器 |
参考报价: N/A |
产地:上海 |
1310nm, 1480nm or 1550nm偏振无关隔离器
|
Features |
||||||
High Isolation Low Insertion Loss Epoxy Free Optical Path |
|||||||
Applications |
|||||||
EDFAs Fiber Lasers DWDM Systems Fiber Optics Communication Equipments |
|||||||
Specifications |
|||||||
Parameter |
Unit |
Premium |
A grade |
Premium |
A grade |
||
Stage |
|
Single Stage |
Dual Stage |
||||
Central Wavelength (λc) |
nm |
1310, 1480 or 1550 |
|||||
Peak Isolation |
Typ |
dB |
42 |
40 |
58 |
55 |
|
Isolation, λc±10nm, 23°C |
Min |
dB |
30 |
29 |
46 |
45 |
|
Insertion Loss, λc, 23°C |
Typ |
dB |
0.35 |
0.5 |
0.4 |
0.6 |
|
Insertion Loss, λc±20nm* |
Max |
dB |
0.5 |
0.7 |
0.6 |
0.9 |
|
Polarization Dependent Loss, 23°C |
Max |
dB |
0.05 |
0.1 |
0.05 |
0.15 |
|
Polarization Mode Dispersion |
Max |
ps |
0.2 |
0.25 |
0.05 |
0.07 |
|
Optical Power (Continuous Wave) |
Max |
mW |
300 |
||||
Tensile Load |
Max |
N |
5 |
||||
Operating Temperature |
°C |
-5 to +70 |
|||||
Storage Temperature |
°C |
-40 to +85 |
|||||
IL is 0.3dB higher for each connector added. |
|||||||
*All temperature |
|||||||

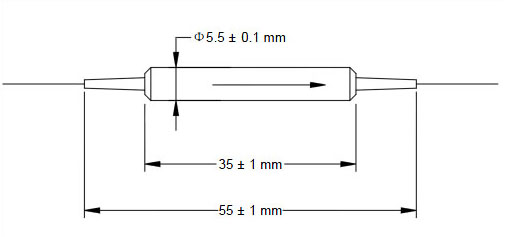

Package Dimensions:
Ordering Information:
P |
I |
I |
S |
||||
Stage |
Wavelength |
Grade |
PMD |
Pigtail |
Fiber Type |
Fiber Length |
Connector |
D=Dual S=Single
|
4=1550nm 5=1480nm 7=1310nm |
P=Premium A=A grade |
1=0.05 ps max 2=Refer to above spec |
S=250μm bare fiber pigtail M=900μm loose tube |
S=SMF-28 fiber |
0=0.5m 1=0.75m 2=1.0m |
0=None 3=FC/APC 5=SC/APC 7=FC/UPC 8=SC/UPC |
Note: |
|||||||
1. Central Wavelength can be customized for different applications. |
|||||||
2. All specifications are subject to change without notice. |
