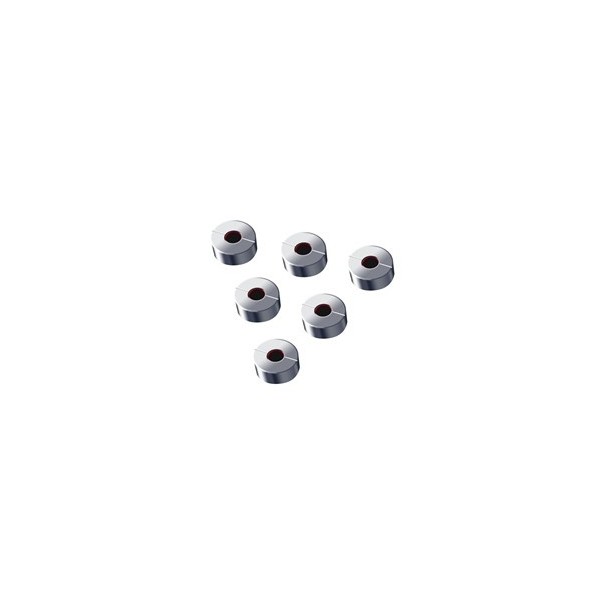

自由空间隔离器
自由空间隔离器
尖丰光电生产各种波长范围的自由空间隔离器。包括单模,多模和保偏光纤隔离器。
自由空间隔离器
尖丰光电生产各种波长范围的自由空间隔离器。包括单模,多模和保偏光纤隔离器。
We provide both inline and free space optical isolators (Faraday isolators) which are designed to operate in 780nm, 850nm, 980nm, 1060nm, 1310nm, 1550nm and L-band. We also specialize in customized isolators according to your applications.
特点:
l 高隔离度
l 低插损
l 大口径
应用:
l 光纤激光器
l 可调激光器
l 光发射机
Specifications
Parameter |
Single stage |
Dual stage |
Center Wavelength (nm) |
1310,1550 orCWDM Wavelength |
|
Operating Wavelength Range(nm) |
+/-20nm |
|
Typ.Peak Isolation (@ 23°C) (dB) |
40 |
55 |
Isolation (@ 23°C) (dB) |
≥26 |
≥50 |
Typ.Insertion Loss (@23°C) (dB) |
0.18 |
0.30 |
Insertion Loss (@23°C) (dB) |
≤0.25 |
0.35 |
ClearAperture(mm) |
Φ0.8 |
Φ0.8 |
Optical Power (mW) |
≤300 |
|
OperatingTemperature(℃) |
0 to +70 |
|
StorageTemperature(℃) |
-40 to +85 |
订单信息
FSI |
Type |
Wavelength |
Package |
|
S= Single stage D = Dual Stage |
1310 1550 XX=Others |
2.5x1.4mm ( SS 304 Ring) 3.0x1.4mm ( SS 304 Ring) 2.5x3.0mm ( SS 304 Ring) 3.0x3.0mm ( SS or MR Ring) 3.0x2.5mm( SS orMR Ring) |
