DL-BP系列宽带光源

DL-BP 系列宽带光源

DL-BP 系列宽带光源

DL-BP 系列宽带光源

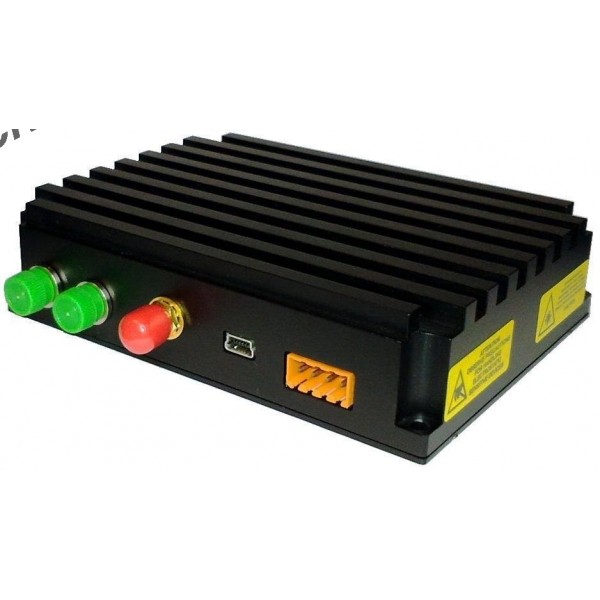

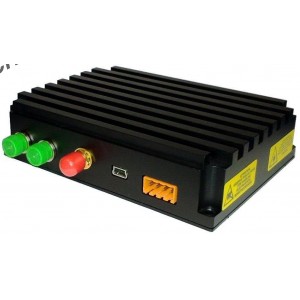

显示在图片与可选的集成返回信号端口。

尖丰光电代理新加坡DenseLight宽带光源等产品。

产品特点



l  Wavelength from 1200 to 1700 nm

l  Optical output power up to 50mW

l  Wide 3dB spectral bandwidth of up to 80nm

l  USB interface for controllable output power and internal modulation frequency

l  CW operation base on ACC or APC operating mode

l  Internal or external direct-modulation (digital inputs)

l  Operating temperature from -20 to 70°C

l  Telcordia certification

应用领域

 - Communications

-

affordable gigabit bandwidth fiber-link to homes and business (FTTX), test & measurement for telecom networks

- Medical applications



-

OCT (biopsies-less medical cell imaging, diagnostic imaging), point of use/ handhelds/ non-invasive diagnosis (blood analysis)

- Energy, oil and gas

-

sensing in gas & oil production, telemetry in electricity distribution

- Industrial controls

-

in-line production process monitoring, 3D metrology and  surface metrology, semiconductor fabrication (solar cells), chemical and gas sensing – safety, emission control, security

- Environmental sensing

-

physical (temp, pressure, strain, vibrations), structural and civil engineering, smart structures, intelligent distributed sensing

- Defense & security

-

perimeter defense, navigation and guidance - inertia sensing (gyroscope), infrared illumination for surveillance and speckle-free military imaging

封装参数
We have packaged our DL-CS series of 14-pin butterfly SLEDs into a complete solution that incorporates a high precision controller for high output level and excellent stability of the superluminescent diodes output. It also features controllable optical output power and internal modulation frequency through USB interface on customizable and integratable user interface such as LabView or C programming language.
The DL-BP1 series consists of a temperature controller, a DenseLight standard 14-pin butterfly package CL-CSxxxxA and a built-in drivers capable for ACC or APC CW driving mode, internal and external direct-modulation.

Telcordia Quality Assured

Telcordia Quality Assured

DenseLight's SLEDs successfully passed Telcordia's GR-468-CORE "Reliability Assurance Requirements for Optopelectronics Devices Used in Telecommunications Equipment"
