ASE宽带光源

DL-ASE 系列

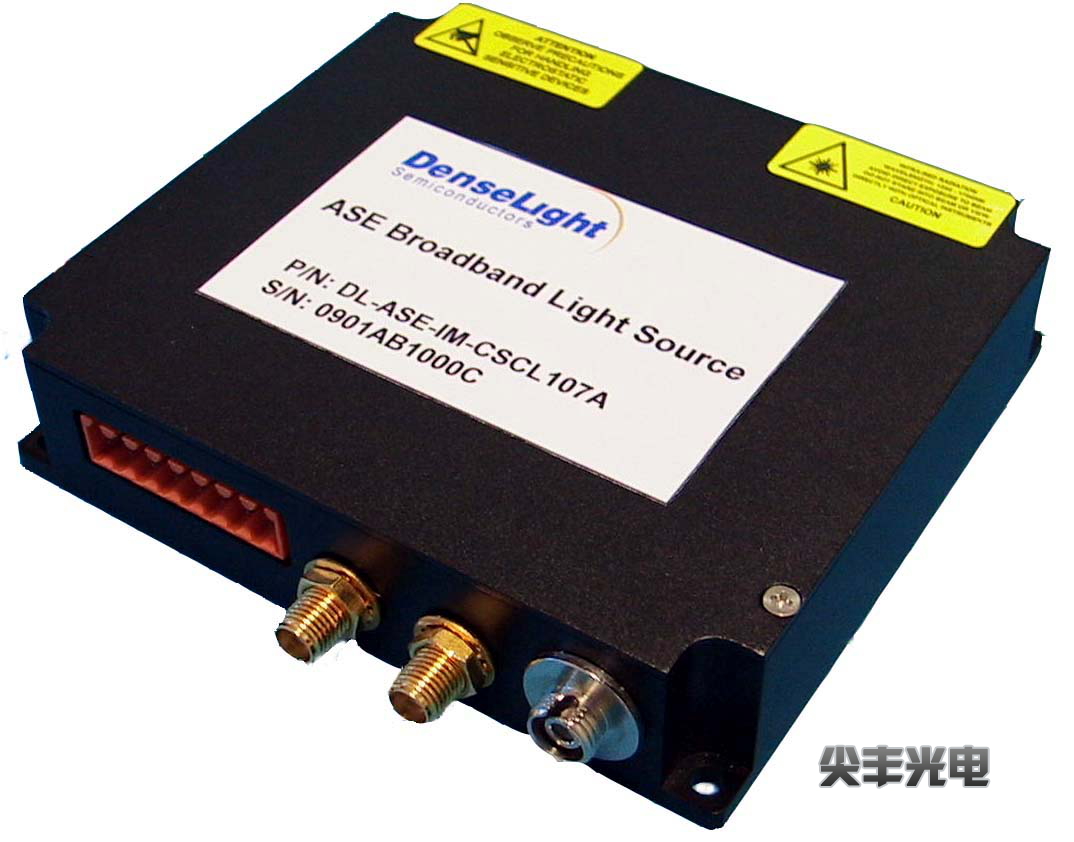

ASE宽带光源（ASE Broadband Light Source）

DL-ASE 系列

ASE宽带光源（ASE Broadband Light Source）

ASE宽带光源ASE宽带光源

Product Description
DenseLight DL-ASE is a series of all-semiconductor low DOP ASE optical sources with a wide selection of wavelengths, covering the entire telecom spectral bands (from O to U). The CW output standard model comes with excellent stability in output power and spectrum. As it operates on direct light generation from superluminescent principle (SLED), it can be directly intensity modulated. Modulation models are available upon request, as well as custom models to meet your specific needs.

Features:

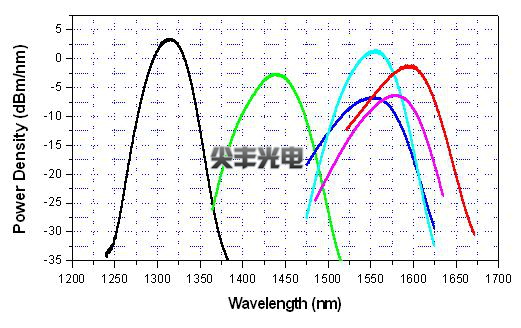

- Wide spectral coverage: O-band (1260-1360nm)
                                           E-band (1360-1460nm)
                                           S-band (1460-1530nm)
                                           C-band (1525-1565nm)
                                           L-band (1565-1675nm)
                                           U-band (1625-1675nm)
- Optical power up to 19dBm
- Degree of Polarization <5%
- CW operation (Excellent stability <0.01dB)
- Operating temperature  0 to 65degC
- Telcordia certification, RoHS Compliance
- Analog modulation (f3dB ~20MHz)

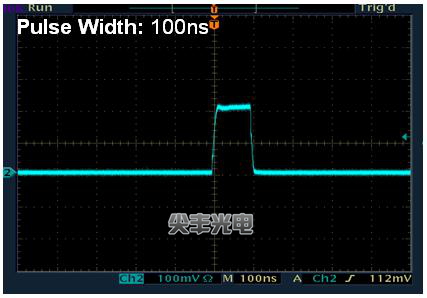

- Digital modulation (tr <1ns)
- Low noise performance
- Integrated optical isolator
- Protective electronics functions
- Monitoring/control interface
- Fiber pigtail output (ASE-CW Series) or FC receptacle(ASE-IM Series)
- Single +5V power supply
- Telcordia Qualified (GR-468-CORE)

ASE宽带光源特点ASE宽带光源特点

ASE宽带光源特点

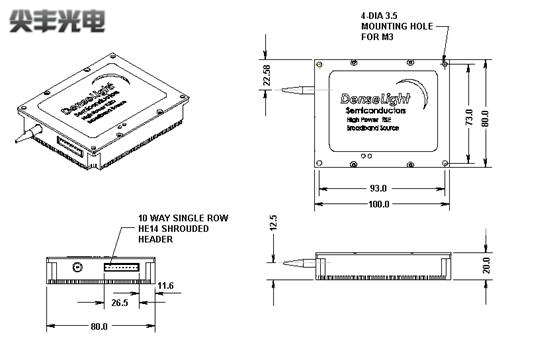

ASE-CW

 ASE-CW

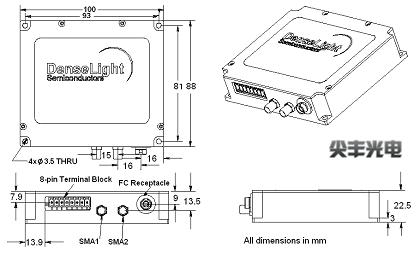

ASE-IM

 ASE-IM

Applications

-   Communications

-

affordable gigabit bandwidth fiber-link to homes and business (FTTX), test & measurement for telecom networks

-     Medical applications



-

OCT (biopsies-less medical cell imaging, diagnostic imaging), point of use/ handhelds/ non-invasive diagnosis (blood analysis)

- Energy,oil and gas

-

sensing in gas & oil production, telemetry in electricity distribution

- Industrial controls

-

in-line production process monitoring, 3D metrology and  surface metrology, semiconductor fabrication (solar cells), chemical and gas sensing – safety, emission control, security

-  Environmental sensing

-

physical (temp, pressure, strain, vibrations), structural and civil engineering, smart structures, intelligent distributed sensing

 - Defense & security

-

perimeter defense, navigation and guidance - inertia sensing (gyroscope), infrared illumination for surveillance and speckle-free military imaging

Product Table

Product

Wavelength

Power

Spectral Density (dBm/nm)

Remark

Product manual download

 Code

Range (nm)

(dBm)

     DL-ASE-CW-CSO193A

1285 - 1335

19

-6.5

CW

  PDF

     DL-ASE-CW-CSE145A

1420 - 1460

14

-7.5

CW

  PDF

     DL-ASE-CW-CSC117A





1525 - 1565

11

-10

CW

  PDF

     DL-ASE-CW-CSC183A

18

-3.5

CW

  PDF

     DL-ASE-CW-CSCL117A

1525 - 1610

11

-15

CW

  PDF

     DL-ASE-CW-CSL165A

1570 - 1610

16

-6

CW

  PDF

     DL-ASE-IM-CSC107A

1525 - 1565

10

-12

Direct Modulation

  PDF

     DL-ASE-IM-CSCL107A

1525 - 1610

10

-18

Direct Modulation

  PDF

Telcordia Quality Assured

 质量保证

DenseLight's SLEDs successfully passed Telcordia's GR-468-CORE "Reliability Assurance Requirements for Optopelectronics Devices Used in Telecommunications Equipment"

Passed 5000 hours accelerated-ageing and ripple-aging tests
