Red, Green, Blue Combiner
(WDM Series )

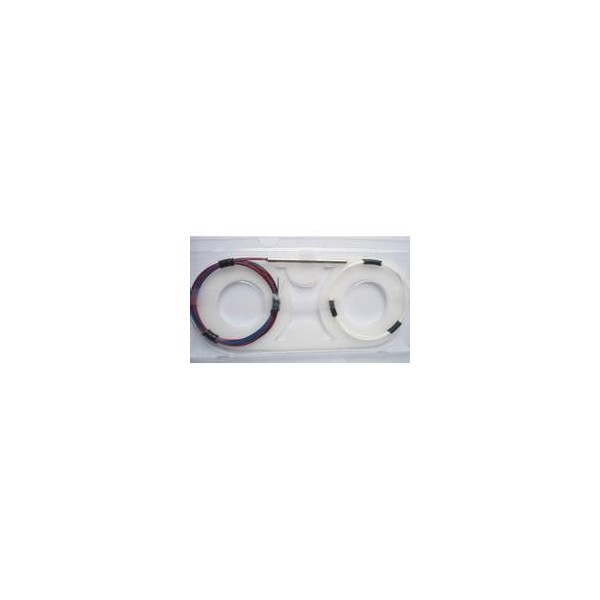

The Red, Green, Blue Combiner enable three primary colors in the visible wavelength region to be combined.
They offer very low insertion loss and excellent environmental stability.
Specifications:
Parameter | Unit | Value | ||||||||||||||||||||||||
Center Wavelengths (λc) | nm | 635(R)/532(G)/488(B) or Specify | ||||||||||||||||||||||||
Typ. Insertion Loss, Red, Green, Blue Input to Output, λc | dB | 0.8 | ||||||||||||||||||||||||
Max. Insertion Loss, Red, Green, Blue Input to Output, λc | dB | 1.2 | ||||||||||||||||||||||||
Thermal Stability | dB/℃ | ≤ 0.005 over -5 °C to +70 °C | ||||||||||||||||||||||||
Min. Return Loss | dB | 50 | ||||||||||||||||||||||||
Min. Directivity | dB | 50 | ||||||||||||||||||||||||
Max. Optical Power | mW | 100 | ||||||||||||||||||||||||
Fiber Type | Nufern 460-HP fiber | |||||||||||||||||||||||||
Operating Temperature | ℃ | -5 to +70 | ||||||||||||||||||||||||
Storage Temperature | ℃ | -40 to +85 | ||||||||||||||||||||||||
*IL is 1.5 dB higher, RL is 5 dB lower for each connector added. | ||||||||||||||||||||||||||
*The Optical Power is 50 mW only for connector added. |
Package Dimensions
Ordering Information
WDM-①-②-③-④ | |||||||||||||||||||||||||
① Wavelengths | ② Connector Type | ③ Fiber Jacket | ④ Fiber Length | ||||||||||||||||||||||
1 - 635, 532, 488 nm | 1 - FC/UPC | 4 - SC/APC | B - 250 µm bare fiber | H - 0.5 m | |||||||||||||||||||||
S - Specify | 2 - FC/APC | N - None | L - 900 µm loose tube | 1 - 1.0 m | |||||||||||||||||||||
3 - SC/UPC | S - Specify | 3 - 3 mm cable | S - Specify | ||||||||||||||||||||||
