1×2(2×2)单模全波长宽带分路器
1×2(2×2)单模全波长宽带分路器
1×2(2×2)单模全波长宽带分路器
Features |
|||||
Low PDL |
|||||
Low Insertion Loss |
|||||
Ultra-Broadband |
|||||
Stable and Reliable |
|||||
Applications |
|||||
Optical Communication System |
|||||
Optical Testing System |
|||||
Passive Optical Network |
|||||
FTTX |
|||||
Specifications |
Splitting Ratio 50:50 |
||||
Parameter |
Unit |
Premium |
A Grade |
||
Port Configuration |
|
1×2 or 2×2 |
|||
Bandwidth |
nm |
1270 to 1605 |
|||
Insertion Loss |
Max |
dB |
3.6 |
4.0 |
|
Excess Loss |
Typ |
dB |
0.07 |
0.1 |
|
Uniformity |
Max |
dB |
0.8 |
1.2 |
|
PDL |
Max |
dB |
0.15 |
0.20 |
|
Operating Power |
Max |
W |
5 |
||
Operating Temperature |
°C |
-40 to +85 |
|||
Storage Temperature |
°C |
-50 to +85 |
|||

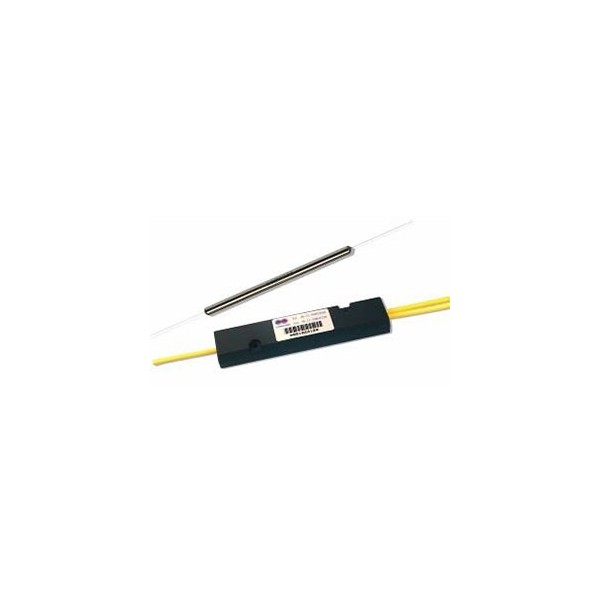

Package Type |
mm |
S6: Φ3×54 for bare fiber |
|||
S8: Φ3×70 for 900μm loose tube |
|||||
M1: 9×16×90 for 900μm loose tube or 2mm cable or 3mm cable |
|||||
Max IL excludes 1385±20nm wavelength. |
|||||
Splitting Ratio & Insertion Loss Conversion Table |
||||
Splitting Ratio |
Maximum Insertion Loss (dB) |
|||
Premium |
A Grade |
|||
Output Port 1 |
Output Port 2 |
Output Port 1 |
Output Port 2 |
|
50:50 |
3.6 |
3.8 |
4.0 |
4.0 |
60:40 |
2.7 |
4.8 |
2.9 |
5.1 |
70:30 |
2.0 |
6.2 |
2.2 |
6.6 |
80:20 |
1.3 |
8.0 |
1.5 |
8.5 |
90:10 |
0.6 |
11.5 |
0.8 |
12.9 |
95:5 |
0.4 |
15.6 |
0.5 |
19.2 |
98:2 |
0.3 |
20 |
0.4 |
21.5 |
99:1 |
0.3 |
24 |
0.4 |
24.6 |
Ordering Information:
A |
B |
S |
||||||
Wave length |
Structure |
Splitting Ratio |
Grade |
Package |
Fiber Type |
Pigtail |
Fiber Length |
Connector |
H= 1270 to 1605nm |
1=1×2 2=2×2 |
99=99:1 98=98:2 95=95:5 90=90:10 80=80:20 70=70:30 60=60:40 50=50:50 |
P=Premium A=A Grade |
5=S6 7=S8 D=M1 |
1=SMF-28e |
S=250μm bare fiber M=900μm loose tube L=3mm cable R=2mm cable |
0=0.5m 1=0.75m 2=1.0m S=Specify |
0=None 1=FC/PC 2=FC/SPC 3=FC/APC 4=SC/SPC 5=SC/APC 6=ST 7=FC/UPC 8=SC/UPC 9=MU A=LC B=SC/PC C=LC/UPC D=LC/APC |
Note: |
