980nm偏振光束合成器/分离器

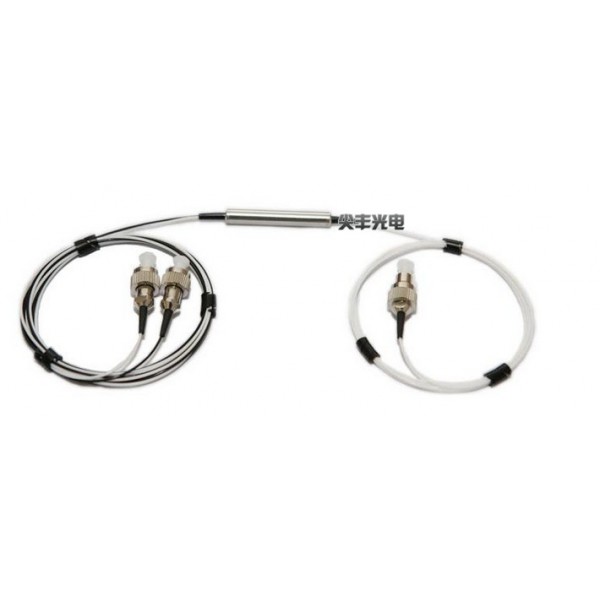

980nm偏振光束合成器/分离器(PBC/PBS)

Features

 980nm偏振光束合成器/分离器

Low Insertion Loss

High Extinction Ratio

High Stability and Reliability

Application

EDFA & Raman Amplifier

Fiber Sensor

Coherent Telecommunication Systems

Polarization Mode Dispersion Compensator


Specifications

Parameter

Value

Wavelength (nm)

980

Operating Bandwidth (nm)

±20

Typ. Insertion Loss (dB)

≤0.9

Insertion Loss (dB)

≤1.1

Extinction Ratio (dB) (Only for PBS)

≥20

Directivity (dB)

≥50

Return Loss (dB)

≥50

Power Handling (mW)

≤300

Fiber Type

Port 1 & 2

980 Panda Fiber

Port 3

HI1060 fiber or 980nm PM Panda Fiber

Ports Marking color(only for 250um bare fiber)

Port2 :Black ,Other ports :Clear

Ports Marking color(only for devices with 900um loose tube )

900um Red loose tube for all ports; marking:port2:black.

Operating Temperature (°C)

-5 ~ +70

Storage Temperature (°C)

-40 ~ +80

Dimensions (mm)

φ5.5 × L35(P1)

*Above specifications are for device without connector.

*For devices with connector,IL will be 0.3dB higher,ER will be 2dB lower and RL will be 5dB lower.

*The PM fiber and the connector key are aligned to the slow axis.

Package Dimensions

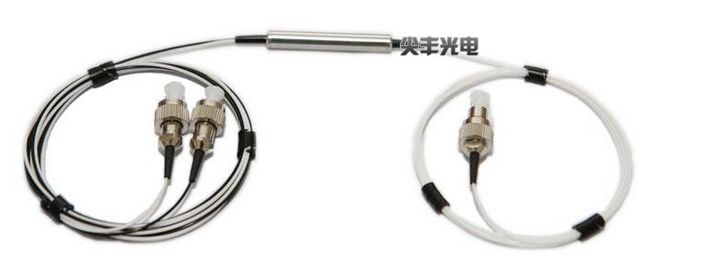

980nm偏振光束合成器

Ordering Information

PBS
PBC

Wavelength

Grade

Fiber Type for Port 3

Pigtail Type

Length

Connector



980=980nm



P=P grade

A=A grade









1=SMF-28e

2=HI1060 fiber

3=PM Fiber, Slow Axis Align to Port 1

4=PM Fiber, Slow Axis Align 45° to Port 1





1=250um bare fiber

2=900um loose tube







H=0.5m

8=0.8m

1=1.0m

5=1.5m





0=None

1=FC/UPC

2=FC/APC

3=SC/APC

4=SC/UPC

5=LC/UPC

6=LC/APC
