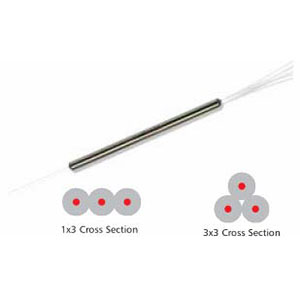

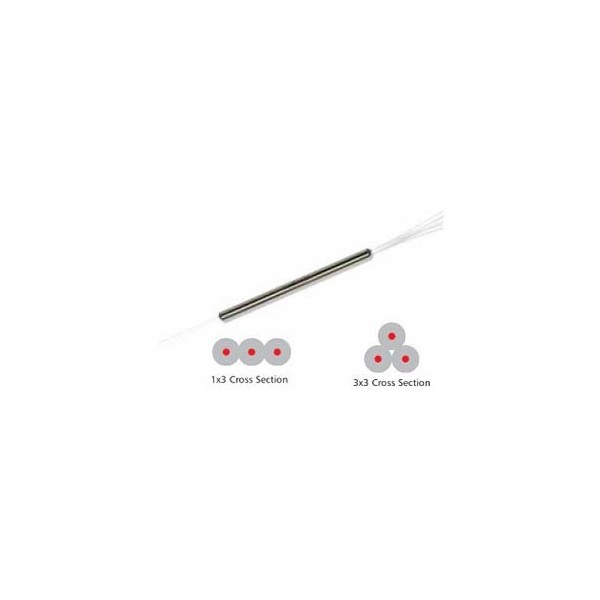

1×3(3×3) 单模窄带分路器

Splitting Ratio & Insertion Loss Conversion Table (1×3 Structure Only)

Splitting Ratio

Maximum Insertion Loss (dB)

Premium

A Grade

Output Port 1

Output Port 2

Output 3

Output Port 1

Output Port 2

Output 3

40:20:40

4.5

7.8

4.5

4.8

8.2

4.8

35:30:35

5.2

5.7

5.2

5.4

6.0

5.4

33:33:33

5.4

5.4

5.4

5.7

5.7

5.7

30:40:30

5.7

4.4

5.7

6.0

4.7

6.0

25:50:25

6.6

3.4

6.6

7.0

3.6

7.0

20:60:20

7.4

2.8

7.4

7.7

3.0

7.7

15:70:15

9.0

2.1

9.0

9.4

2.4

9.4

10:80:10

10.8

1.1

10.8

11.2

1.3

11.2

5:90:5

14.7

0.65

14.7

15.0

0.8

15.0

2.5:95:2.5

17.8

0.4

17.8

18.1

0.5

18.1

1:98:1

21.5

0.25

21.5

22.0

0.3

22.0

0.5:99:0.5

24.5

0.25

24.5

25.0

0.3

25.0

订单信息

SNS

Wavelength

Stru

cture

Splitting Ratio

Grade

Package

Fiber Type

Pigtail

Fiber Length

Connector

1=1625nm

2=1590nm

3=1570nm

4=1550nm

5=1480nm

6=1475nm

7=1310nm

8=1064nm

9=980nm

A=850nm

L=780nm

P=2000nm

S=Specify

3=

1×3

A=

3×3

99=0.5:99:0.5

98=1:98:1

90=5:90:5

...

33=33:33:33

20=40:20:40

P=

Premium

A=

A Grade

5=S6

7=S8

D=M1

1=SMF-28e

5=OFS980-20

6=HI1060

7=HI1060 FLEX

8=OFS980-16

9=HI780C

A=Large mode area fiber

S=250μm bare fiber

M=900μm loose tube

L=3mm cable

R=2mm cable

0=0.5m

1=0.75m

2=1.0m

S=Specify

0=None

1=FC/PC

2=FC/SPC

3=FC/APC

4=SC/SPC

5=SC/APC

6=ST

7=FC/UPC

8=SC/UPC

9=MU

A=LC

B=SC/PC

C=LC/UPC

D=LC/APC

Note:
1. Central Wavelength can be customized for different applications.
2. All specifications are subject to change without notice.
