RG, RB, GB Combiner
RG, RB, GB Combiner | |||||||||||||||||||||||
(WDM Series ) | |||||||||||||||||||||||

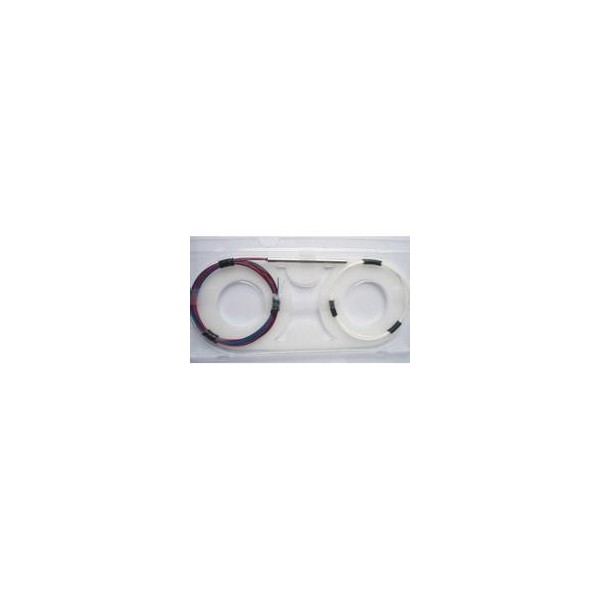

The RG, RB, GB Combiner enable any two primary colors in the visible wavelength region to be combined. | |||||||||||||||||||||||
They offer very low insertion loss and excellent environmental stability. |
Specifications | ||||||||||||||||||||||||||||||
Parameter | Unit | Value | ||||||||||||||||||||||||||||
Center Wavelength (λc) | nm | 635(R)/532(G), 635(R)/488(B), 532(G)/488(B) | ||||||||||||||||||||||||||||
Typ. Insertion Loss, λc | dB | 0.3 | ||||||||||||||||||||||||||||
Max. Insertion Loss, λc | dB | 0.5 | ||||||||||||||||||||||||||||
Thermal Stability | dB/℃ | ≤ 0.002 over -5 °C to +70 °C | ||||||||||||||||||||||||||||
Min. Return Loss | dB | 50 | ||||||||||||||||||||||||||||
Min. Directivity | dB | 50 | ||||||||||||||||||||||||||||
Max. Optical Power (Continuous Wave) | mW | 100 | ||||||||||||||||||||||||||||
Fiber Type | Nufern 460-HP fiber | |||||||||||||||||||||||||||||
Operating Temperature | ℃ | -5 to +70 | ||||||||||||||||||||||||||||
Storage Temperature | ℃ | -40 to +85 | ||||||||||||||||||||||||||||
*IL is 1.5 dB higher, RL is 5 dB lower for each connector added. | ||||||||||||||||||||||||||||||
*The Optical Power is 50 mW only for connector added. |
Package Dimensions
Ordering Information:
WDM-①-②②-③-④-⑤
①: Configuration | ②②: Wavelength | ③: Connetor Type | |||||||||||||||||||
1 - 1 × 2 | RG - 635 & 532 nm | 1 - FC/UPC | 4 - SC/APC | ||||||||||||||||||
RB - 635 & 488 nm | 2 - FC/APC | N - None | |||||||||||||||||||
GB - 532 & 488 nm | 3 - SC/UPC | S - Specify | |||||||||||||||||||
④: Fiber Jacket | ⑤: Fiber Length | ||||||||||||||||||||
B - 250 μm bare fiber | Q - 0.75 m | ||||||||||||||||||||
L - 900 μm loose tube | S - Specify |
