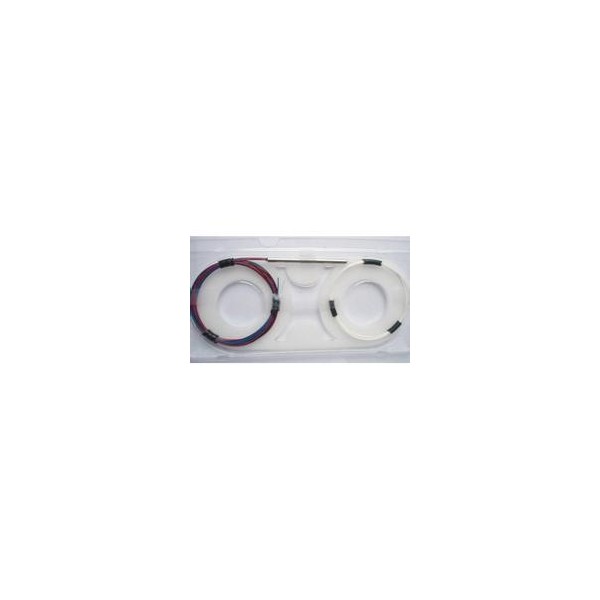

RG, RB, GB Combiner

 RG, RB, GB Combiner

RG, RB, GB Combiner

RG, RB, GB Combiner
(WDM Series )
The RG, RB, GB  Combiner enable any two primary colors in the visible wavelength region to be combined.
They offer very low insertion loss and excellent environmental stability.
Specifications
Parameter               Unit         Value
Center Wavelength (λc)       nm         635(R)/532(G), 635(R)/488(B), 532(G)/488(B)
Typ. Insertion Loss, λc       dB         0.3
Max. Insertion Loss, λc       dB         0.5
Thermal Stability           dB/℃         ≤ 0.002 over -5 °C to +70 °C
Min. Return Loss            dB         50
Min. Directivity             dB         50
Max. Optical Power (Continuous Wave) mW         100
Fiber Type                         Nufern 460-HP fiber
Operating Temperature       ℃         -5 to +70
Storage Temperature       ℃         -40 to +85
*IL is 1.5 dB higher, RL is 5 dB lower for each connector added.
*The Optical Power is 50 mW only for connector added.

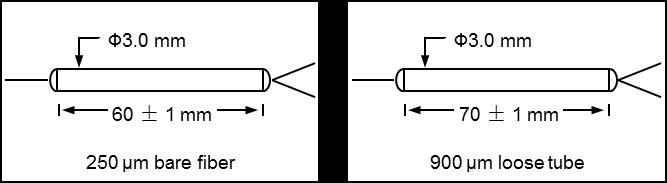

Package Dimensions

RG, RB, GB Combiner

Ordering Information:

WDM-①-②②-③-④-⑤

①: Configuration   ②②: Wavelength     ③: Connetor Type
1 - 1 × 2         RG - 635 & 532 nm   1 - FC/UPC  4 - SC/APC
              RB - 635 & 488 nm   2 - FC/APC    N - None
              GB - 532 & 488 nm   3 - SC/UPC   S - Specify


④: Fiber Jacket   ⑤: Fiber Length
B - 250 μm bare fiber Q - 0.75 m
L - 900 μm loose tube S - Specify
