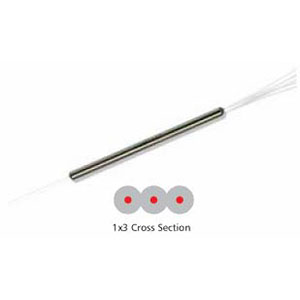

1x3 Single Mode Broadband Splitter
1x3 Single Mode Broadband Splitter
1x3 Single Mode Broadband Splitter
Features |
|
Low PDL Low Insertion Loss Stable and Reliable Compact Size |
|
Applications |
|
Optical Communication System Optical Testing System Optical Fiber Sensor Optical Power Distributor |
Specifications |
Splitting Ratio 33:33:33 |
|||
Parameter |
Unit |
Premium |
A Grade |
|
Port Configuration |
|
1×3 |
||
Bandwidth |
nm |
±40 |
||
Insertion Loss |
Max |
dB |
5.4 |
5.7 |
Excess Loss |
Typ |
dB |
0.15 |
0.2 |
PDL |
Max |
dB |
0.1 |
0.15 |
Operating Power |
Max |
W |
5 |
|
Operating Temperature |
°C |
-40 to +85 |
||
Storage Temperature |
°C |
-50 to +85 |
||
Package Type |
mm |
S6: Φ3×54 for bare fiber |
||
S8: Φ3×70 for 900μm loose tube |
||||
M2: 7.5×18×90 for 900μm loose tube or 2mm cable or 3mm cable |
Splitting Ratio & Insertion Loss Conversion Table only for ±20nm Bandwidth |
||||||
Splitting Ratio |
Maximum Insertion Loss (dB) |
|||||
Premium |
A Grade |
|||||
Output Port 1 |
Output Port 2 |
Output 3 |
Output Port 1 |
Output Port 2 |
Output 3 |
|
49:2:49 |
3.6 |
16.0 |
3.6 |
3.8 |
14.0 |
3.8 |
45:10:45 |
4.0 |
11.0 |
4.0 |
4.2 |
11.5 |
4.2 |
40:20:40 |
4.5 |
8.0 |
4.5 |
4.7 |
8.4 |
4.7 |
35:30:35 |
5.0 |
5.8 |
5.0 |
5.2 |
6.1 |
5.2 |
33:33:33 |
5.3 |
5.3 |
5.3 |
5.6 |
5.6 |
5.6 |
30:40:30 |
5.8 |
4.5 |
5.8 |
6.1 |
4.7 |
6.1 |
10:80:10 |
11.0 |
1.2 |
11.0 |
12.0 |
1.4 |
12.0 |
5:90:5 |
15.0 |
0.7 |
15.0 |
16.0 |
0.9 |
16.0 |
2:96:2 |
19.0 |
0.4 |
19.0 |
20.0 |
0.5 |
20.0 |
1:98:1 |
23.0 |
0.3 |
23.0 |
24.0 |
0.4 |
24.0 |
Ordering Information | ||||||||
Wavelength |
Structure |
Splitting Ratio |
Grade |
Package |
Fiber Type |
Pigtail |
Fiber Length |
Connector |
4= 1550nm 5= 1480nm 7= 1310nm P= 2000nm S= Specify |
3= 1×3 |
98=1:98:1 96=2:96:2 90=5:90:5 ... 33=33:33:33 20=40:20:40 10=45:10:45 02=49:2:49 |
P= Premium A= A Grade |
5=S6 7=S8 E=M2 |
1= SMF-28e |
S=250μm bare fiber M=900μm loose tube L=3mm cable R=2mm cable |
0=0.5m 1=0.75m 2=1.0m S=Specify |
0=None 1=FC/PC 2=FC/SPC 3=FC/APC 4=SC/SPC 5=SC/APC 6=ST 7=FC/UPC 8=SC/UPC 9=MU A=LC B=SC/PC C=LC/UPC D=LC/APC |
Note: 1. Central Wavelength can be customized for different applications. 2. All specifications are subject to change without notice. |
