Product Description:

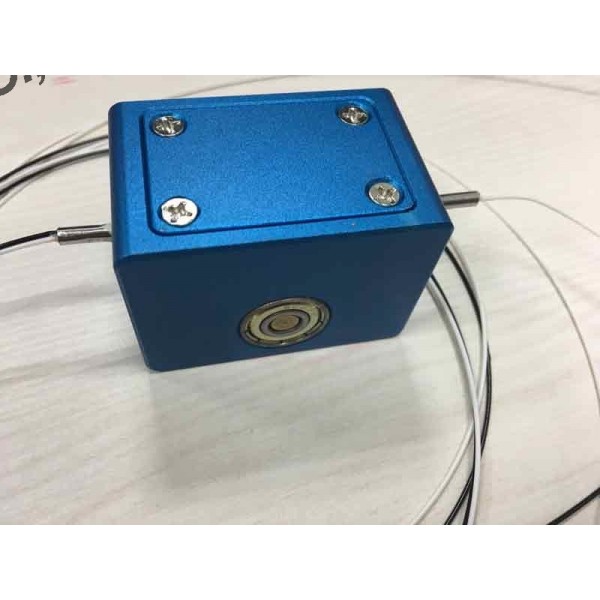

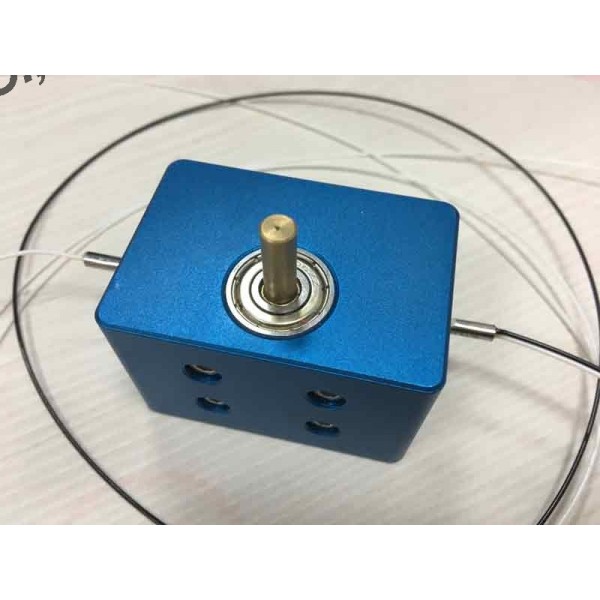

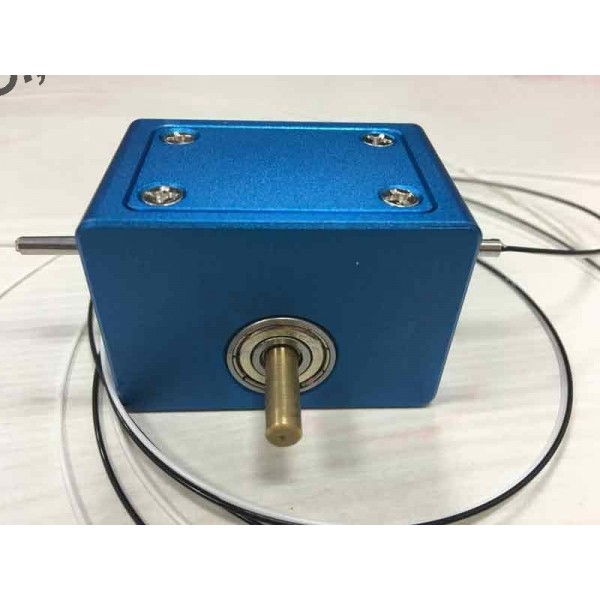

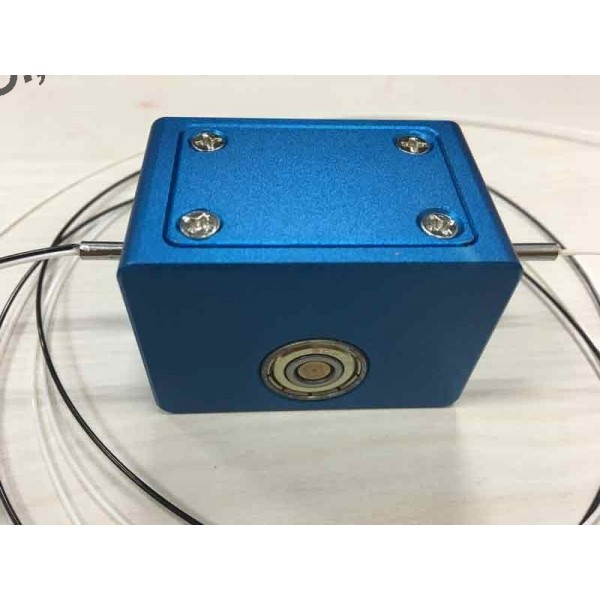

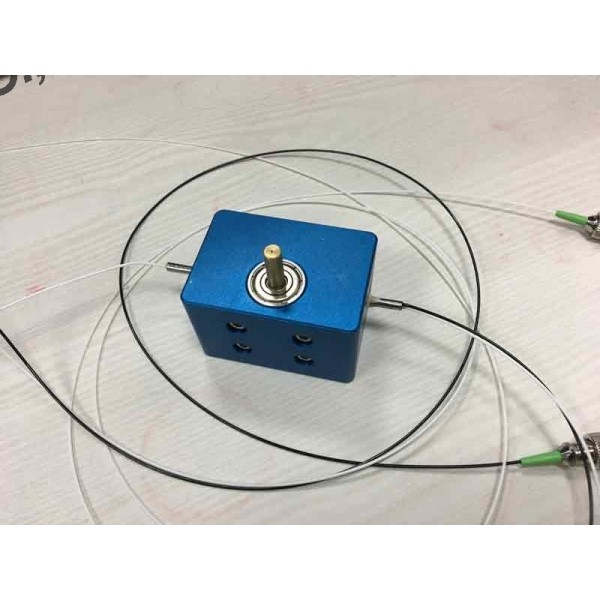

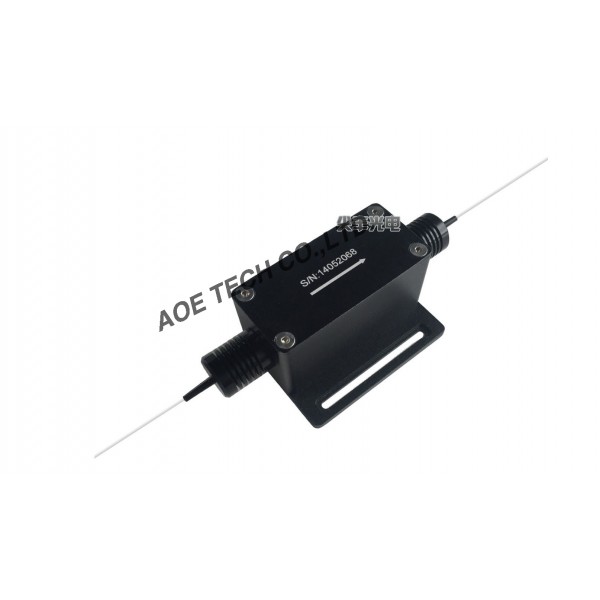

1x2   SM  Tunable Ratio Coupler

Model Number:

VOCA100PSXJ03

Customer Model Number:

NA

Customer’s Code:

CC00061

Spec. Revision:

001

Spec Review Log-In Number:

K05/12/17-01

Device Schematic Drawing

Optical Specifications

Port Configuration

1x2

Operating Wavelength

nm

850

Insert Loss

Max

dB

3.2

Tuning Rang of  Ratio

 %

0~100

Operating power handling

Max

mW

300

Optical Return Loss

Min.

dB

40

Remarks:

Environmental Conditions

Operating Conditions

Operating Humidity

%RH

≤90

Storage Humidity

%RH

≤90

Operating Temperature

°C

-5 to +70

Storage Temperature

°C

-50 to +85

Operating Power

mW

≤300

Tensile Load

N

≤5

Packaging Specifications

Package Size (mm)

300x300x150

Package Material

AL Box

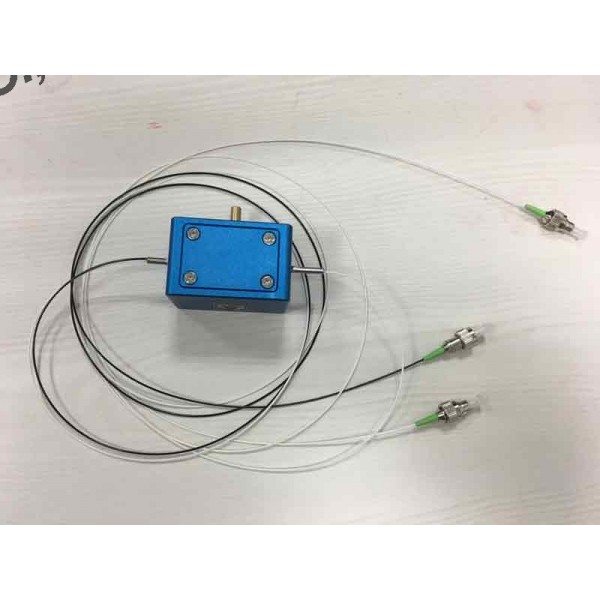

Fiber Type

        SM 780(Input), PM 780  (output port)

Pigtail Type

900um loose tube

Pigtail Length

≥1m for Each Port

Color Code on Pigtail

Red on Port2( one of output port)

Connector Type

FC/PC

Marking on Device Body

Only S/N

Remarks:

Shipping Mark

Mark on Box

P.O. /Contract No., Model No., Serial No., etc.

Special Requirement

Not Required

Specification Revision Records

Revision

Issue Date

Description of Change

Changed by:
