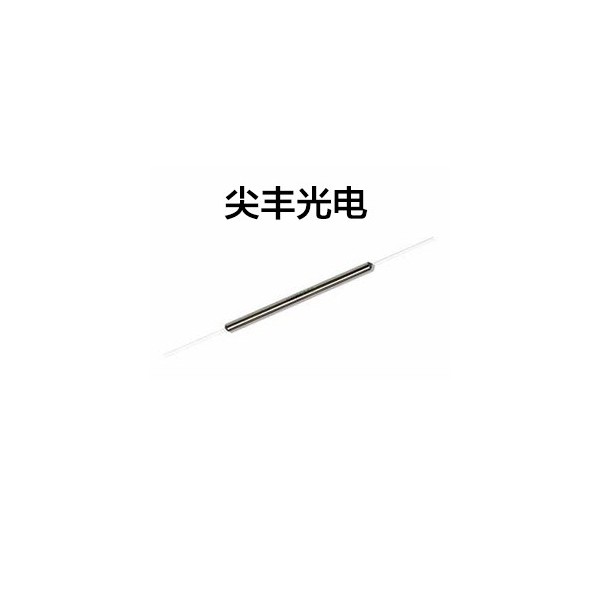

980nm/1310nm单模光纤波分复用器

980_1310nm单模光纤波分复用器

980nm/1310nm单模光纤波分复用器

Features



  • Low PDL
  • Low Insertion Loss
  • High Isolation
  • Stable and Reliable



Applications

  • Optical Communication System
  • Optical Fiber Amplifier

Specifications

980/1310nm

Parameter

Unit

Premium

A Grade

Shorter Wavelength Channel

nm

980±10

Insertion Loss

Max

dB

0.3

0.4

PDL

Max

dB

0.1

0.15

Isolation@1310±15nm

Min

dB

18

18

Longer Wavelength Channel

nm

1310±15

Insertion Loss

Max

dB

0.3

0.4

PDL

Max

dB

0.1

0.15

Isolation@980±10nm

Max

dB

18

16

Operating Power

Max

W

5

Operating Temperature

°C

-40 to +85

Storage Temperature

°C

-50 to +85

Package Type

mm

S6: Φ3×54 for bare fiber

S8: Φ3×70 for 900μm loose tube

M1: 9×16×90 for 900μm loose tube or 2mm cable or 3mm cable

Typical Spectrum:

Single Mode Fiber WDM Typical Spectrum

Ordering Information:

W

D

M



0

0



Wavelength

Structure

Grade

Package

Fiber Type

Pigtail

Fiber Length

Connector



4=980/1310nm

1=1×2

2=2×2

P=Premium

A=A Grade

5=S6

7=S8

D=M1

5=OFS980-20

6=HI1060

7=HI1060 FLEX

8=OFS980-16

S=250μm bare fiber

M=900μm loose tube

L=3mm cable

R=2mm cable

0=0.5m

1=0.75m

2=1.0m

S=Specify

0=None

1=FC/PC

2=FC/SPC

3=FC/APC

4=SC/SPC

5=SC/APC

6=ST

7=FC/UPC

8=SC/UPC

9=MU

A=LC

B=SC/PC

Note:

1. Central Wavelength can be customized for different applications.

2. All specifications are subject to change without notice.
