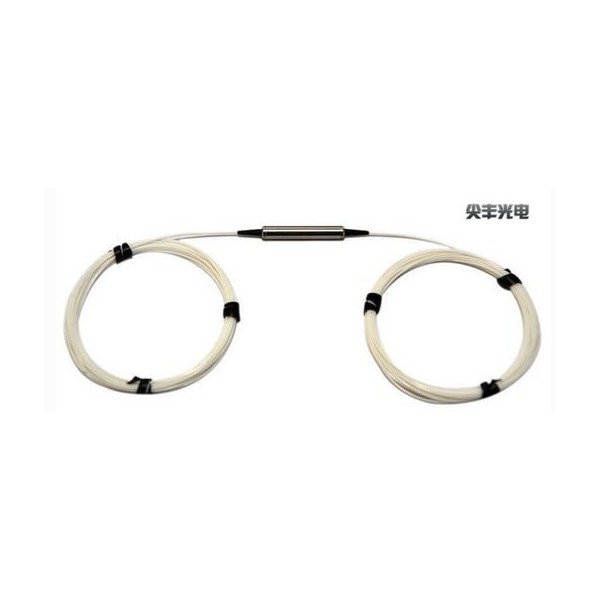

100GHz DWDM Device

Features

Low insertion loss

High channel isolation

High stability and reliability

Application

DWDM system

Metro/Access Networks
CATV Fiberoptic System

Parameter

1X2 Single Channel

Channel Center Wavelength(nm)

100G ITU Grid Channel

Operating Wavelength Range (nm)

1500~1640

Channel space (nm)

0.8(100G)

Channel bandwidth (nm)

≥0.22

Insertion Loss for pass channel(dB)

≤0.80

Insertion Loss for reflect channel(dB)

≤0.40

PDL (dB)

≤0.2

 Isolation (dB)

Pass Channel @Adjacent channel Isolation

≥30

Pass Channel @Non-adjacent channel Isolation

≥40

Reflect Channel@ Pass band

≥12

Directivity (dB)

≥50

Return loss (dB)

≥45

Wavelength thermal stability (nm/°C)

≤0.002

Insertion loss thermal stability (dB/°C)

≤0.003

Power handling (mW)

≤500

Fiber Type

SMF-28e

Operating temperature (°C)

0 ~ +70

Storage temperature (°C)

-40 ~ +85

Dimensions (mm)

φ5.5×L35
