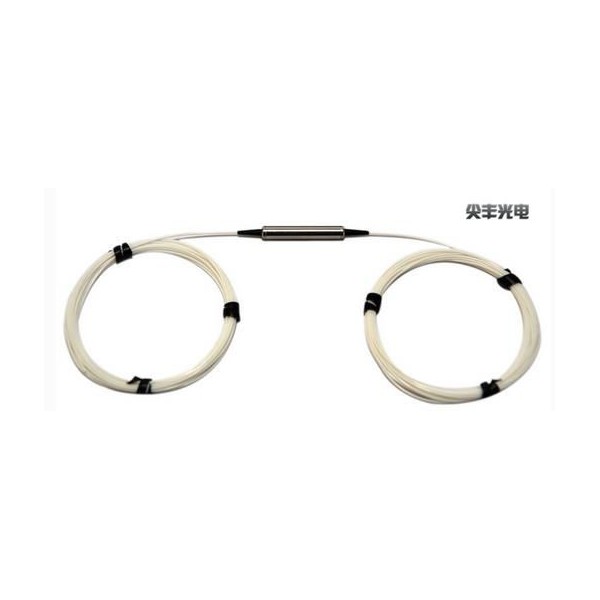

100GHz DWDM Device
100GHz DWDM Device
100GHz DWDM Device
Features |
|
Low insertion loss High channel isolation High stability and reliability |
|
Application |
|
DWDM system Metro/Access Networks |
Specifications
Parameter |
1X2 Single Channel |
|
Channel Center Wavelength(nm) |
100G ITU Grid Channel |
|
Operating Wavelength Range (nm) |
1500~1640 |
|
Channel space (nm) |
0.8(100G) |
|
Channel bandwidth (nm) |
≥0.22 |
|
Insertion Loss for pass channel(dB) |
≤0.80 |
|
Insertion Loss for reflect channel(dB) |
≤0.40 |
|
PDL (dB) |
≤0.2 |
|
Isolation (dB) |
Pass Channel @Adjacent channel Isolation |
≥30 |
Pass Channel @Non-adjacent channel Isolation |
≥40 |
|
Reflect Channel@ Pass band |
≥12 |
|
Directivity (dB) |
≥50 |
|
Return loss (dB) |
≥45 |
|
Wavelength thermal stability (nm/°C) |
≤0.002 |
|
Insertion loss thermal stability (dB/°C) |
≤0.003 |
|
Power handling (mW) |
≤500 |
|
Fiber Type |
SMF-28e |
|
Operating temperature (°C) |
0 ~ +70 |
|
Storage temperature (°C) |
-40 ~ +85 |
|
Dimensions (mm) |
φ5.5×L35 |
*Above specifications are for module without connector.For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.
Package Dimensions
Ordering Information:
DWDM |
Spacing |
ITU Grid |
Pigtail Type |
Length |
Connector |
|
1=100G
|
01=CH1 02=CH2 34=CH34 …… 72=CH72 |
1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube
|
H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m
|
0=None 1=FC/UPC 2=FC/APC 3=SC/APC 4=SC/UPC 5=LC/UPC 6=LC/APC
|
