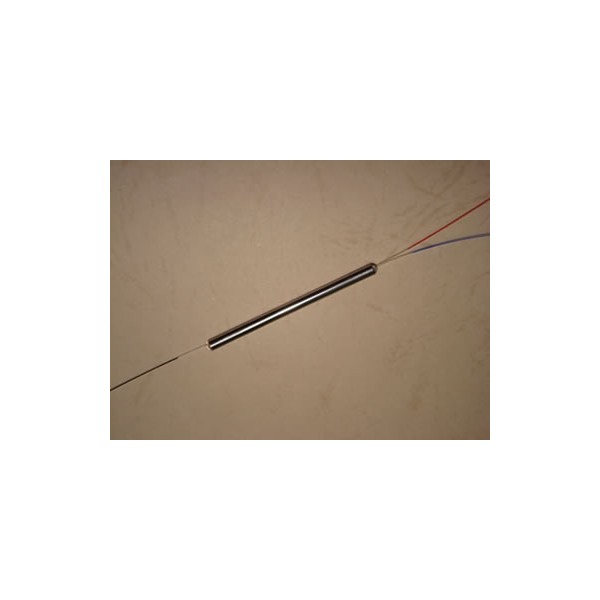

Singlemode Wavelength Division Multiplexers (980/1064)

(WDM Series )
The Singlemode Wavelength Division Multiplexers combine or separate light at different wavelengths. They
offer very low insertion loss, low polarization dependence, high isolation, and excellent enviromental stability.
These components have been extensively used in EDFA, CATV, WDM networks and fiber optics
instrumentation.

Specifications
Parameter               Unit         Value
Center Wavelength (λc)       nm             980/1064
Operating Wavelength       nm         λc ± 5
Min. Isolation             dB           13
Max. Insertion Loss         dB         0.35
Max. Polarization Dependent Loss  dB         0.1
Thermal Stability           dB/             0.002 over -5 to +70
Min. Return Loss            dB         60
Min. Directivity             dB           60
Max. Optical Power (Continuous Wave) mW           300
Operating Temperature                   -5 to +70
Storage Temperature                   -40 to +85
*IL is 0.5 dB higher, RL is 5 dB lower for each connector added.
*Test at central wavelength only.

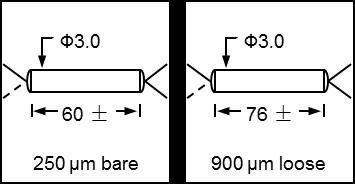

Package Dimensions


Ordering Information
WDM--②②②②----
: Configuration               : Connetor Type
1 - 1 × 2                     1 - FC/UPC  4 - SC/APC
2 - 2 × 2                     2 - FC/APC    N - None
                          3 - SC/UPC   S - Specify

: Fiber Jacket               :Fiber Type
B - 250 μm bare fiber           H - HI 1060 fiber
L - 900 μm loose tube           F - HI 1060 Flex fiber
                          S - Specify
