2 μm Polarization Maintaining Faraday Mirror

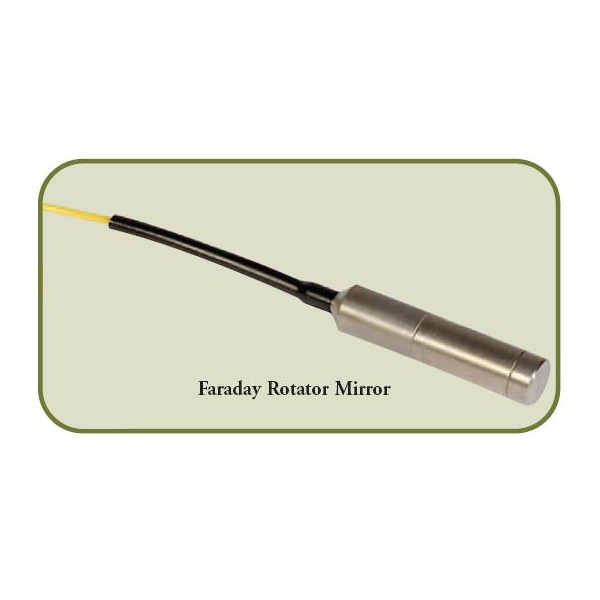

Polarization Maintaining Faraday Mirror

Polarization Maintaining Faraday Mirror

Polarization Maintaining Faraday Mirror
(PMFM Series)                                 Rev 11
The Polarization Maintaining Faraday Mirror is a passive device that provides 90 degree rotation regarding
to the polarization state of the input light. The PMFM offers excellent performance including the lowest possible
insertion loss and enviromental stability. It is used in amplifiers, fiber lasers and fiber instruments to minimize the
polarization effect.

Specifications
Parameter                       Unit               Value
Center Wavelength                   nm     1920, 2000, 2070
Operating Wavelength Range             nm               ±15
Typ. Insertion Loss                                                                              dB               0.6
Max. Insertion Loss                   dB               0.9
Faraday Rotation Angle (Single Pass)     degree             45
Max. Rotation Angle Tolerance, λc, 23     degree                 ± 2
Min.Extinction Ratio                   dB               20
Fiber Type                                   PM 1550 fiber or PM 1950 fiber
Max.Optical Power                   mW               300
Max. Tensile Load                   N               5
Operating Temperature                               -5  to +70
Storage Temperature                               -40 to +85
*IL is 0.3 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.

Package Dimensions











Ordering Information
PMFM-①①①①----
①①①①: Wavelength    : Fiber type     : Connector Type : Fiber Jacket     : Fiber Length
1920 - 1920 nm       1 - PM 1550     1 - FC/UPC       B - 250 μm bare fiber Q - 0.75 m
2000 - 2000 nm       2 - PM 1950     2 - FC/APC       L - 900 μm loose tube   S - Specify
2070 - 2070 nm       S - Specify       3 - SC/UPC       S - Specify
S - Specify                         4 - SC/APC
                                N - None
                                S - Specify
