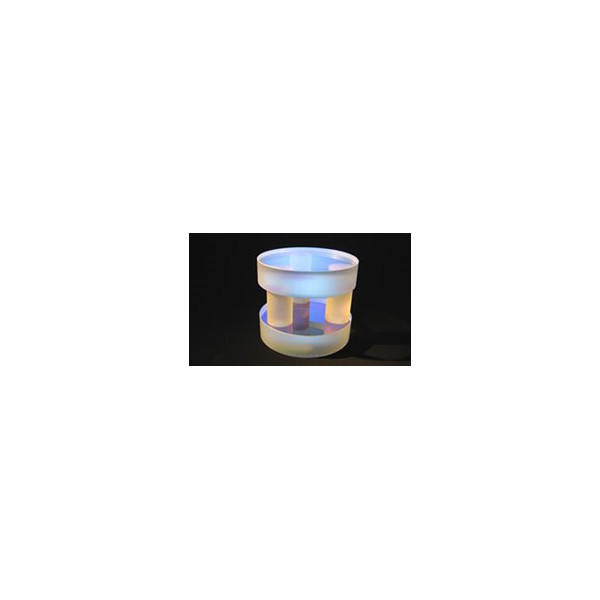

Air Spaced Etalons with a Fixed Gap

Air Spaced Etalons with a Fixed Gap

Air Spaced Etalons with a Fixed Gap

具有固定间隙的空气间隔标准具



  • Resonator Surface Figure Matching: λ/100 or better
  • Front Surface Figure: λ/20 or better
  • Surface Quality: 10/5 or better
  • Wedge: 30 minutes (to avoid reflections)
  • AR coated: Less than 0.5%R
  • Wavelength Range: Customer Specified
  • Finesse: Customer Specified
  • Free Spectral Range, FSR: Customer Specified
  • Dimensions: see table catalog
  • Fused Silica is our standard material however Zerodur may be specified





1" Fixed Air Spaced Etalon

Part Number: OP-7401

Details: 5mm aperture, FSR and finesse based on customer requirements.


2" Fixed Air Spaced Etalon

Part Number: OP-7402

Details: 30mm aperture.  FSR and finesse and design details based on customer requirements.


3" Fixed Air Spaced Etalon

Part Number: OP-7403

Details: 50mm aperture.  FSR and finesse and design details based on customer requirements.


4" Fixed Air Spaced Etalon

Part Number: OP-7404

Details: 70mm aperture.  FSR and finesse and design details based on customer requirements.


5" Fixed Air Spaced Etalon

Part Number: OP-7405

Details: 90mm aperture, FSR and finesse based on customer requirements.


6" Fixed Air Spaced Etalon

Part Number: OP-7406

Details: 110mm aperture.  FSR and finesse and design details based on customer requirements


7" Fixed Air Spaced Etalon

Part Number: OP-7407

Details: 130mm aperture.  FSR and finesse and design details based on customer requirements.


8" Fixed Air Spaced Etalon

Part Number: OP-7408

Details: 150mm aperture.  FSR and finesse and design details based on customer requirements
