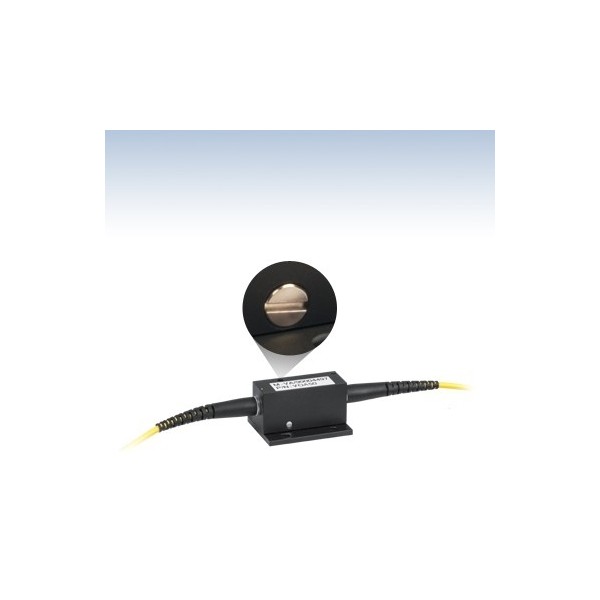

Multimode Manual Variable Optical Attenuator(MVOA)
|
Features |
|
|
Highprecision Wide attenuationrange Low Insertion Loss Compactsize |
|
|
Application |
|
|
Optical communication systems test Optics labuse |
Specifications:
|
Type Parameter |
850,1310 |
|
Wavelength(nm) |
850 ± 40 or 1310 ±40 |
|
Attenuation range(dB) |
0.8 ~40 |
|
Insertion Loss(dB) |
≤0.8 |
|
Return loss(dB) |
≥30 |
|
FiberType |
Multimode fiber 50/125 or62.5/125 |
|
Adjustment Precision(dB) |
0.02 |
|
PDL(dB) |
≤0.15 |
|
Operating temperature(℃) |
0 ~+70 |
|
Storage temperature(℃) |
-40 ~+85 |
|
Dimension(mm) |
26 x 16 x8 |
PackageDimensions
OrderingInformation
|
MVOA |
Wavelength |
Adjustment Type |
PigtailType |
FiberType |
Length |
Connector |
|
|
850 1310 |
1=Hand adjustment |
900=900um loose tube 2000=2mm loose tube 3000=3mm loose tube |
2=50/125 3=62.5/12.5 |
1=1m |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC XX=Other |
