Wasatch Photonics is a manufacturer of volume phase holograpic gratings. Our gratings are unmatched in performance and offer many clear advantages over conventional surface relief gratings. The grating structure is in the volume of the grating medium and not on the surface. This allows for a thicker grating to be produced. With over 130 years of combined experience in developing, designing and manufacturing these gratings, our skilled staff is ready to meet the needs of your most demanding projects.
General |
|
Surface quality |
60-40 scratch-dig |
Diffracted Wavefront |
< λ/5 rms @ 632.8 nm |
Spatial Frequency |
1167 l/mm +/- 0.5 l/mm |
CWL |
1212 nm |

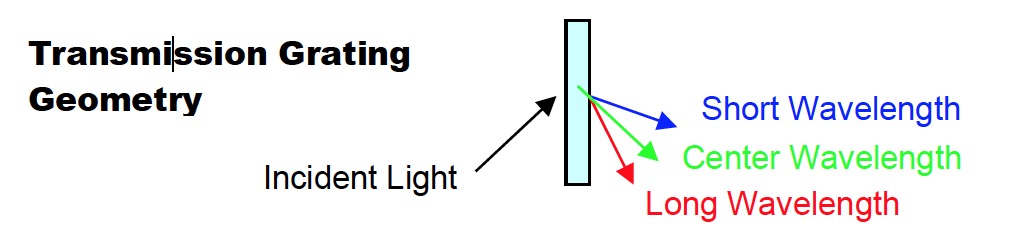

Angle of Incidence (AOI) |
45° @ 1212 nm |
Thickness Tolerance |
+/- 0.25 |
Dimension Tolerance |
+0/-0.15 |
Lines Perpendicular to B |
0.15° |
Chamfers |
0.25-0.75 mm face width |
Chamfers Angle/Tolerance |
45° +/-15° |
AR Coating |
< 0.5% Reflection; 1112 nm - 1312 nm |
Substrate and Cover glass |
3 mm BK7 6 mm total thickness |
Clear Aperture |
30 mm x 40 mm |
Dimensions |
A=35 mm B=45 mm T=6 mm |
Efficiency HD-1167-lpmm-@-1212-nm-rectangle

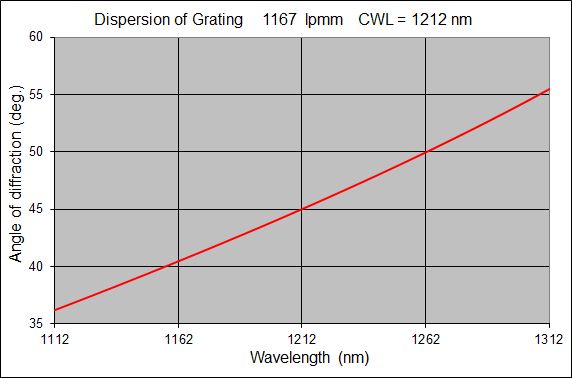

Dispersion
