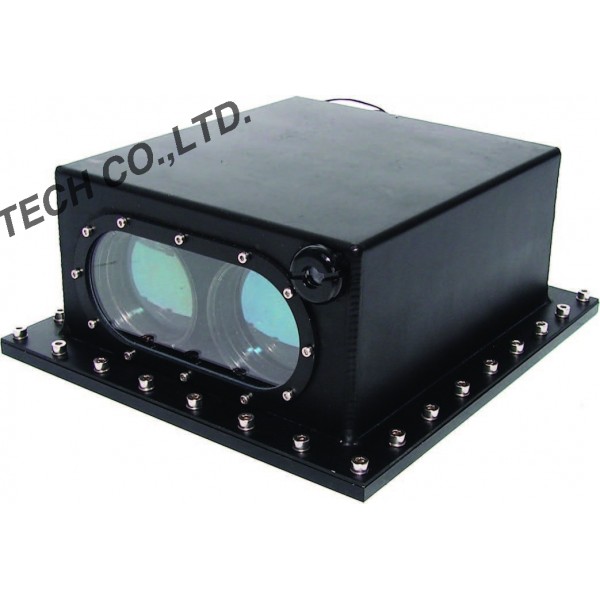

The new MOD 4EC is designed specifically for remotely operated small platforms. In addition to the out-standing functionality, this new module can be attached to Mini-Typhoon, CLAWS and others systems with a quick release mount. The unit is designed to endure the harsh operating conditions of a real world.
The unit can withstand high vibration, wide temperature range, dust, rain, and RF jammers.
MOD 4EC provides distance, speed, azimuth and elevation measurements from continues power source. Other features include gating, fast scan, target selection, etc.
The unit can be integrated with other systems via RS232. In designing the LRF Module for precision target acquisition, special attention was given to the ability to bore-sight the unit with existing platform that it is being used on. A removable visual channel and a video camera attachment are provided to enable quick boresight and visual integration with other observation systems.
Laser type, nm |
905 nm, eye-safe |
Measurement range, m |
10 - 4,000 |
Distance measurement accuracy, m |
±1 |
Azimuth measurement range |
6,400 mils/ 360º |
Elevation measurement range |
±60º |
Azimuth measurement accuracy |
±1º |
Elevation measurement accuracy |
±1º |
Distance resolution, m |
1 |
Measurement time, sec |
0.5 |
Beam divergence, mrad |
1 |
Power source |
9V DC |
Environmental protection |
Shockproof |
Waterproof |
IP 66 / IP 67 (optional) |
Dimensions, mm |
230x210x95 |
Weight, kg |
2.6 |
