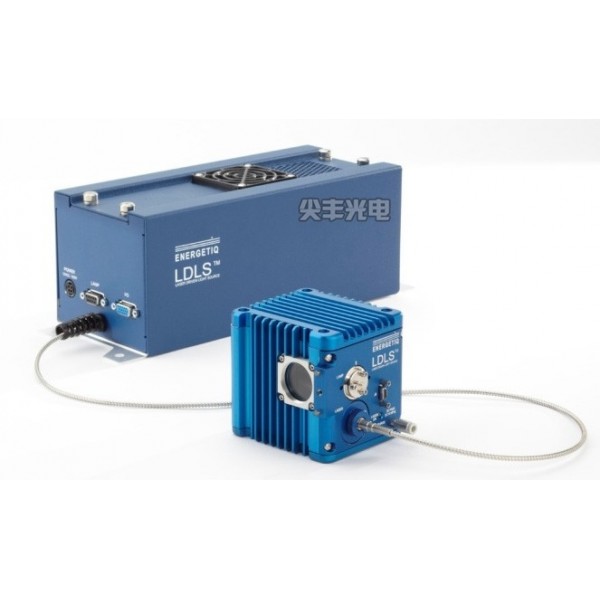

EQ-99XFC LDLS

EQ-99XFC LDLS

Compact, Long-Life, High-Brightness,Broadband Laser-Driven Light Source with Fiber-Coupled Output



EQ-99XFC LDLS

       Compact, Long-Life, High-Brightness,Broadband Laser-Driven Light Source with Fiber-Coupled Output

      Advanced imaging & analytical spectroscopy applications in the life sciences and materials sciences need light sources capable of providing extremely high brightness across a broad wavelength range. Traditionally, multiple lamps (Halogen/Tungsten, Xenon-arc, Deuterium) have been used to cover this broad spectral range. However, combining multiple lamps is costly and optically inefficient, and the use of electrodes within these lamps limits their ability to achieve the high brightness or power needed for the most demanding applications. Furthermore, traditional electrode-driven light sources have short life, need to be changed frequently,and during their life the lamp output declines constantly. To address these problems, Energetiq has developed a revolutionary single-light source technology called the LDLS™ Laser-Driven Light Source that enables extreme high brightness with a relatively flat spectrum, from deep ultraviolet through visible into the near infrared, combined with life-time an order of magnitude longer than traditional lamps.



       The LDLS EQ-99XFC has integrated collection optics that allow greater ease of use for those needing a fiber connection. The high performance ellipsoidal collector ensures that the ultra-high brightness light and power stability are maintained across the broad spectrum, from 190nm to 2100nm, and efficiently coupled into small diameter optical fibers. Proprietary Fiber-Protection Technology™ enhances DUV performance and significantly extends fiber life by reducing the effects of solarization. Utilizing a patented laser-driven bulb technology* and ultra-clean construction, the EQ-99XFC is ideal for applications requiring ultra-long lamp life combined with high broadband brightness.

Features  &  Benefits

•FC fiber output for precision coupling

•Efficient, high performance elliptical collection optics

•Proprietary Fiber-Protection Technology™

    - Enhanced DUV, longer fiber life

•Very high brightness across spectrum

    - UV-Vis-NIR (190nm - 2100nm)

•Eliminates need for multiple lamps

    - Replaces D2/Tungsten/Xenon Arc

•Superior spatial and power stability

    - Repeatable measurements

•Ultra-clean construction

    - Improved stability & extended life

•Electrodeless operation for long life

    - Reduced cost of ownership

Industry  Applications

  • UV-Vis-NIR Spectroscopy
  • Monochromator Source
  • Thin-Film Measurements
  • Fiber Optics Testing
  • Advanced Imaging/Microscope Illuminators
  • Applications requiring long lamp life

The Technology Behind LDLS™

Researchers using light for imaging and analytical spectroscopy in a variety of applications in the life sciences and materials sciences need light sources capable of providing extremely high brightness across a broad wavelength range. Traditionally, multiple lamps (Tungsten/Halogen, Xenon-arc, Deuterium) have been used to cover this broad spectral range. However, combining multiple lamps is costly and optically inefficient, and the use of electrodes within these lamps limits their ability to achieve the high brightness or power needed for the most demanding applications. Furthermore, traditional electrode-driven light sources have short life, need to be changed frequently, and during their life the lamp output declines constantly. To address this problem, Energetiq has developed a revolutionary single-light source technology called the LDLS™ Laser-Driven Light Source that enables extreme high brightness over a broad spectral range, from 170nm through visible and beyond, combined with lifetimes an order of magnitude longer than traditional lamps.
Energetiq's innovative LDLS technology uses a CW laser to directly heat a Xenon plasma to the high temperatures necessary for efficient deep ultraviolet production. In traditional approaches such as arc and deuterium lamps, the brightness, UV power, and lamp lifetime are limited by the use of electrodes to couple power to the plasma. The electrodeless LDLS technology creates small, high brightness plasma that allows efficient light collection, broad spectral range from the deepest UV through visible and beyond, and long lamp life.
*Patent Numbers:
US: 7435982; 7786455; 7989786; 8309943; 9048000; 9185786
Japan: 5410958; 5628253
Korea: 10-1507617
UK: GB2450045
OTHER PATENTS PENDING
