ZnSe
ZnSe
Zinc selenide is a material of choice for IR optics, substrates, scintillators and electro-optical modulators.
ZnSe
Zinc selenide is a material of choice for IR optics, substrates, scintillators and electro-optical modulators.
ZnSe
Zinc selenide is a material of choice for IR optics, substrates, scintillators and electro-optical modulators.
Structure: |
Cubic (zincblende) |
Density |
5.264 g/ cm3 |
Hardness |
105 kg/ mm2 |
Flexural Strength (4pt bending) |
7500 psi |
Young’s Modulus |
10.2 Mpsi |
Poisson Ratio |
0.28 |
Coefficient of thermal expansion |
7.1×10−6/K |
Specific Heat |
0.339 J/gK |
Thermal conductivity |
0.16 W/cmK |
Eg at 295 K |
2.67 eV |
Dielectric Constant |
8.976 |
Max. Transmittance (λ=2.5-15 μm) |
≥70.5 % |
Absorption Coefficient (λ=10.6 μm) |
(1-2)×10-3 cm-1 (including 2 surfaces) |
Damage threshold (λ=10.6 μm) |
≥100 kWt/cm2 |
Thermo-Optic Coef. (dn/dT) |
6.1 ( λ=10.6 μm) |
Refractive index (λ=10.6 μm) |
2.4 |
Electrooptical coefficient r41 (λ=10.6 μm) |
2.2×10-12 m/V |
γ-radiation tolerance dose |
> 106 J/kg |

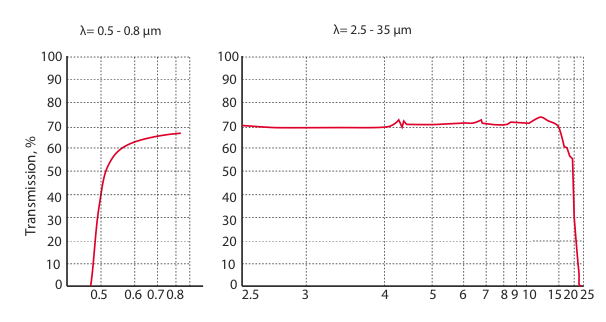

ZnSe传输曲线
ZnSe rods, wafers, windows and lenses
Diameter/Width |
1-50 mm |
Thickness/length |
0.1-150 mm |
Orientation |
(110), (111) |
Surface quality |
As-grown, as-cut, 80/50, 60/40, 40/20 per MIL-0-13830 |
Purity |
99.99%, 99.999% |
Particle size |
0.01- 10 mm |
