ASB-W-005 5W Tungsten-Halogen Fiber Light Source

ASB-W-005 5W Tungsten-Halogen Fiber Light Source

• Provides optimal illumination to fiber optics for remote applications
• Offers excellent color temperature stability
• Use with SP's SM Series spectrometers
• Contains internal current regulation

Optimum Illumination for SP's SM Series Spectrometers

This lamp is a near Black Body source of light in the visible to near IR spectral region. It has been designed to produce the maximum illumination from a Black Body source into a fiber bundle.

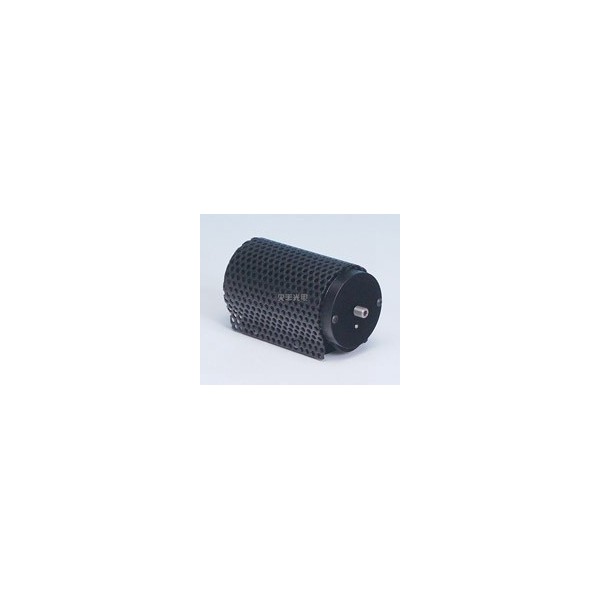

The lamp assembly comes in a 5 watt tungsten/halogen lamp configuration, an aluminum housing, and a wall transformer as a power supply. The power input is regulated inside the lamp housing to assure a ± 0.4% stability over the current range. Current regulation ensures color temperature stability.
The tungsten/halogen lamp used inside the lamp has a nominal color temperature of 2800ºK and an average life of 10,000 hours at this color temperature.
