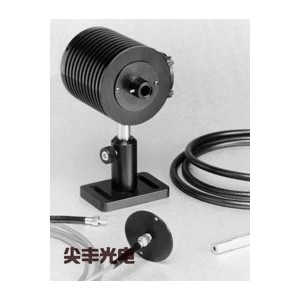

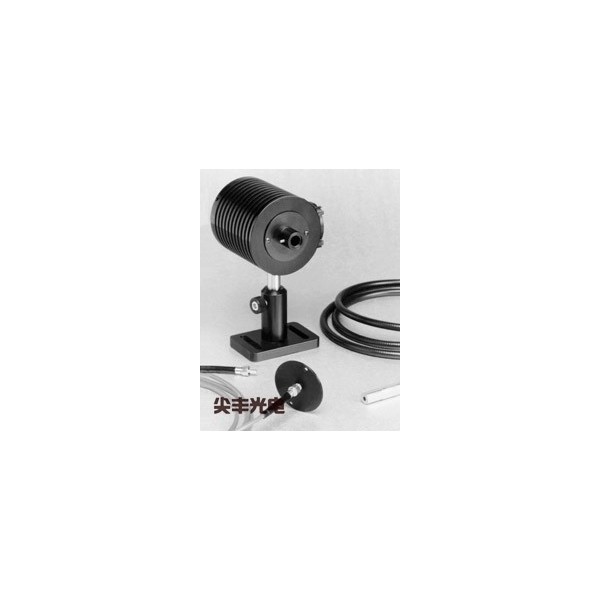

The ASB-W-020 is a complete light source assembly with a tungsten-halogen lamp that emits in the 300 to 2500 nanometer (nm) wavelength region. It has been designed to transfer the maximum possible illumination to a variety of fibers. The tungsten-halogen lamp of the ASB-W-020 is a near blackbody source of light with a built-in fused silica lens that focuses the light to the fiber. Figure 1 shows blackbody spectral distributions at various color temperatures in Kelvin (K). The ASB-W-020 spectral distributions resemble those of Figure 1 out to about 2500nm, beyond which the transmission of the fused silica lens limits the output.
In addition to the 20 Watt tungsten-halogen lamp (SP # ASB-W-020B), the ASB-W-020 features a lamp housing and a current regulator to assure a stable output. The housing contains an adjustable lamp mount. A variety of flanges allow the mounting of different fiber terminations, from a single fiber to bundles.
The 20 Watt tungsten-halogen lamp used in the ASB-W-020 has a nominal color temperature of 3100 K and the regulated power input assures an average life of 2000 hours.
The power supply provided with the ASB-W-020 is a wall plug-in type.
Please click here to view the manual for this light source.
Feature | Value |
Lamp: | Tungsten-Halogen |
Power: | Wall transformer, 120 VAC, 50/60 Hz to 24 VDC at 2.0 amps. 220 VAC version available |
Current Regulation: | Built-in, ± 0.4% |
Color Temperature: | 3100° K |
Bulb Life: | 2,000 hrs. average (nominal) |
Spectral Distribution: | Near blackbody |
Housing: | Aluminum, forced air cooled, Limited focus adjustment |
Connector: | SMA Fiber connector Type 905 |
Dimension: | Length 3.8 inches (9.8cm) Height 2.3 inches (5.9cm) Width 2.1 inches (5.7cm) |
Weight: | 11 ozs. (0.3 kgs.) |
Options: |
|
Warranty: | One year |
