DIODE XS SERIES LASER AT 405nm

Wavelength (nm)

405±5

Operating mode

CW

Output power (mW)

>1, 10, 20, …,200

Power stability (rms, over 4 hours)

<1%, <3%

Transverse mode

Near TEM00

Noise of amplitude(rms,20Hz~20MHz)

<1%(<0.5%, optional)

M2 factor

<1.2

Beam diameter at the aperture (1/e2,mm)

~1.0

Beam divergence, full angle (mrad)

<1.0

Polarization ratio

>50:1 (>100:1, optional)

Horizontal±5 degree (Vertical Optional)

Warm-up time (minutes)

<5

Beam height from base plate (mm)

19

Operating temperature (℃)

10~35

Input voltage

+12VDC

Expected lifetime (hours)

10000

Warranty

1 year

MDL-XS-405

Optional Power Supply

79.1(L) ×40(W) ×40 (H) mm3,    0.2kg

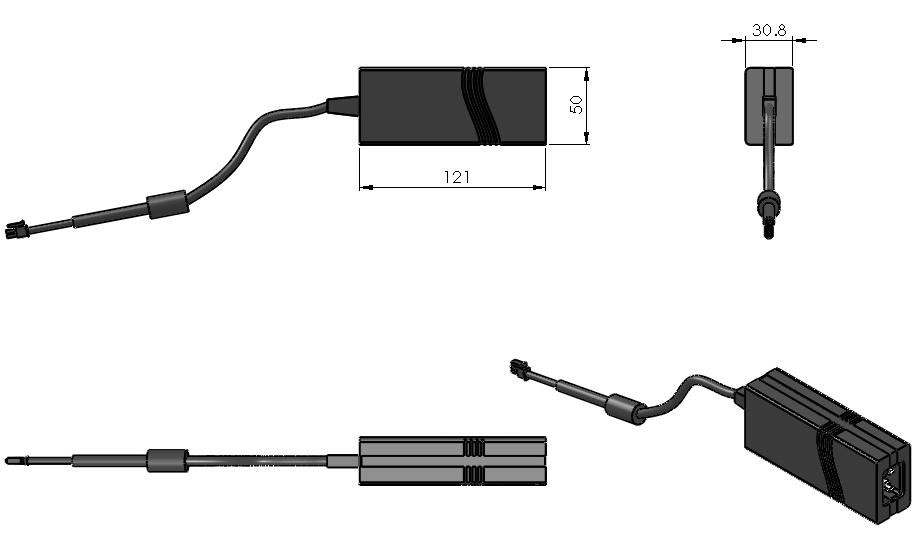

121(L) ×50(W) ×30.8 (H) mm3,    0.3kg
