DIODE XS SERIES LASER AT 520 nm

DIODE XS SERIES LASER AT 520 nm

DIODE XS SERIES LASER AT 520 nm

DIODE XS SERIES LASER AT 520 nm

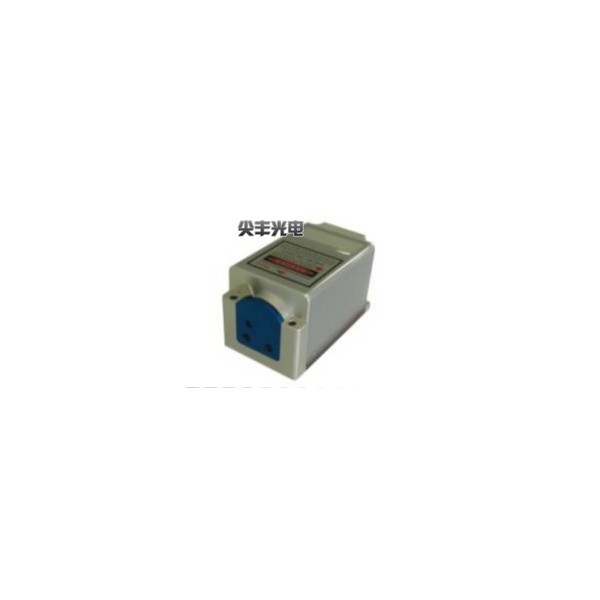

    Diode XS series laser module at 520nm, features with integrated electronics,plug and play,miniaturization,standardization of interface advantages of continuous diode lasers.It is the ideal solution for a wide range of applications including life sciences,environmental monitoring,inspection and machine vision.

SPECIFICATIONS:

Wavelength (nm)

520±5

Operating mode

CW

Output power (mW)

>1, 2, 3, …,50

Power stability (rms, over 4 hours)

<1%, <3%

Transverse mode

Near TEM00

Noise of amplitude(rms,20Hz~20MHz)

<1%(<0.5%, optional)

M2 factor

<1.2

Beam diameter at the aperture (1/e2,mm)

~1.0

Beam divergence, full angle (mrad)

<1.0

Polarization ratio

>50:1 (>100:1, optional)

Horizontal±5 degree (Vertical Optional)

Warm-up time (minutes)

<5

Beam height from base plate (mm)

19

Operating temperature ()

10~35

Input voltage

+12VDC

Expected lifetime (hours)

10000

Warranty

1 year

MDL-XS-520

Optional Power Supply

DIODE XS SERIES LASER AT 520 nm

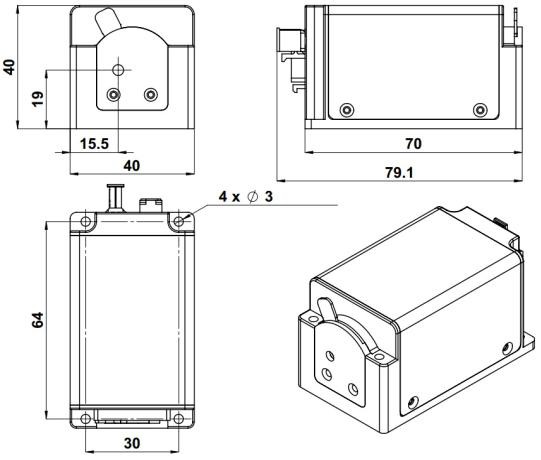

79.1(L) ×40(W) ×40 (H) mm3,    0.2kg

DIODE XS SERIES LASER AT 520 nm

121(L) ×50(W) ×30.8 (H) mm3,    0.3kg
