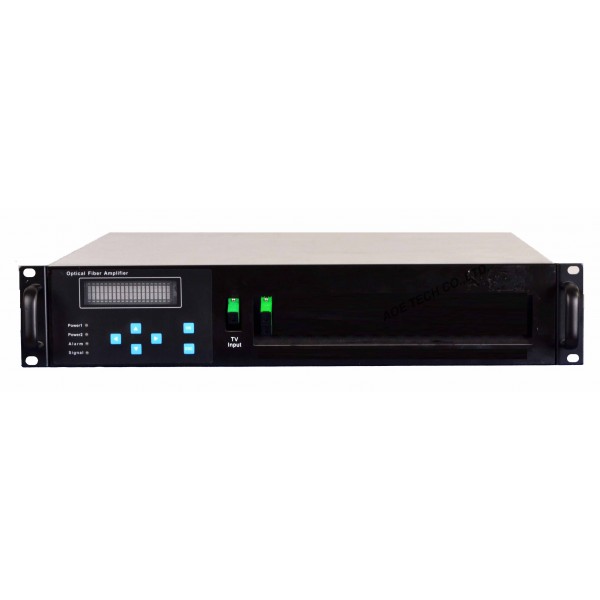

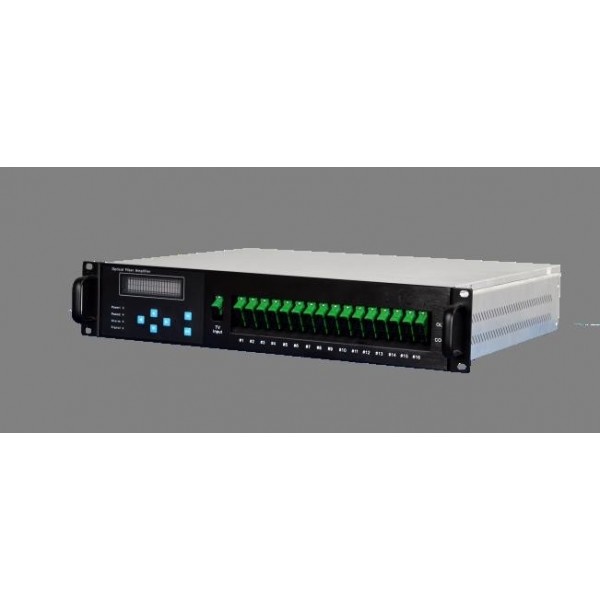

JF2110 Series PM High Power OFA for FTTH
The product is high output power C-Band Er-Yb co-doped double cladding optical fiber amplifier. The key components of the product are high reliability multimode PUMP laser and the double cladding optical fiber. A proprietary ATC (Automatic Temperature Control) and APC (Automatic Power Control) circuit insures the high stability and reliability output power, the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system to ensure the control, adjustment and display are intelligent and easy.
This amplifier employ double cladding Erbium Ytterbium co-doped fiber, and employ the high power multimode pump, with a 10 times Conversion efficiency higher than the single mode general technology, and therefore have a lower relative cost and more compact size and lower power consumption, in particular, for FTTH or FTTB or other large distribution system applications.
This amplifier employs patented technology for pump dump (Patent No. ZL200820150412.3), and the patented technology for the laser driver circuit (Patent No. ZL200820150413.8), to get better and more stable performance.
Employ intelligent temperature control system: (1)Adopt special temperature control circuit,heat radiating and power consumption can be reduced 30%, (2)The professional air flow design can also ensure the best temperature stability, at the same time powerful fan will start when the case temperature is over 45℃, meanwhile it will stop as the temperature is under 40℃.The technology makes sure the thermal stability of system and fan’s long life.
Intelligent network management system.Perfectly network interface: Ethernet, RS-485 and RS-232 network,and the open network management interface ensure the connectivity with all other network management system.
These products are widely used in CATV transmission system and the high power distributing system FTTH requirement. It can be used for CATV analog/digital signal distribution, or match with PON system to construction the triple network integration. (Triple wavelength WDM is optional)
Application
- PM fiber sensor
- Coherent detection
- Free space optical communication
- Research and design area
Feature
l High power Polarization output.
l Output stability <0.1dB
l Single mode PM output
l High stability and reliability: MTBF>100000 hours
l Perfect status monitoring interface: RS-485 and RS-232
l High precision AGC/APC circuit: power control accuracy typ ±0.05dB
l Intelligent temperature control system: power consumption and hot radiation reduce 30% than common products
l OEM is optional
l Compatible with Bellcore GR-1312-CORE
Optical Characteristics
Parameter
|
Symbol
|
Min
|
Typ
|
Max
|
Unit
|
Wavelength
|
λc
|
1540
|
1550
|
1565
|
nm
|
Output Power
|
Po
|
------
|
------
|
37
|
dBm
|
Input power
|
Pi
|
-3
|
------
|
+10
|
dBm
|
Noise Figure
|
NF
|
------
|
8
|
-----
|
dB
|
Output power stability
|
ΔPo
|
-----
|
±0.05
|
±0.2
|
dB
|
Input Isolator
|
ISOi
|
30
|
------
|
------
|
dB
|
Output Isolator
|
ISOo
|
30
|
------
|
------
|
dB
|
Input Pump Leakage
|
PumpLin
|
------
|
------
|
-35
|
dBm
|
Output Pump leakage
|
PumpLout
|
------
|
------
|
-45
|
dBm
|
Return Loss
|
RL
|
-------
|
-------
|
-45
|
dB
|
PDG
|
PDG
|
------
|
-------
|
0.3
|
dB
|
PMD
|
PMD
|
------
|
-------
|
0.5
|
ps
|
Polarization Extinction Ratio
|
PER
|
17
|
------
|
------
|
dB
|
Output
|
PM output
|
Electric Characteristics
Parameter
|
Symbol
|
Min
|
Typ
|
Max
|
Unit
|
Power supply ※
|
Vps
|
85/170
|
110/220
|
132/264
|
VAC
|
Consumption ※※
|
P
|
-----
|
-----
|
100
|
W
|
※ 110VAC,220VAC and -48VDC is optional.
※※Actual consumption depend on the output power and environment temperature
Environmental Characteristics
Parameter
|
Symbol
|
Min
|
Typ
|
Max
|
Unit
|
Operating Temperature
|
Tw
|
-5
|
-----
|
60
|
℃
|
Storage Temperature
|
Ts
|
-40
|
-----
|
80
|
℃
|
Humidity
|
------
|
10
|
------
|
85
|
%
|
(3):Non-condensing
Mechanical Dimension
JF2120:483*364*88(mm)
Order Information
