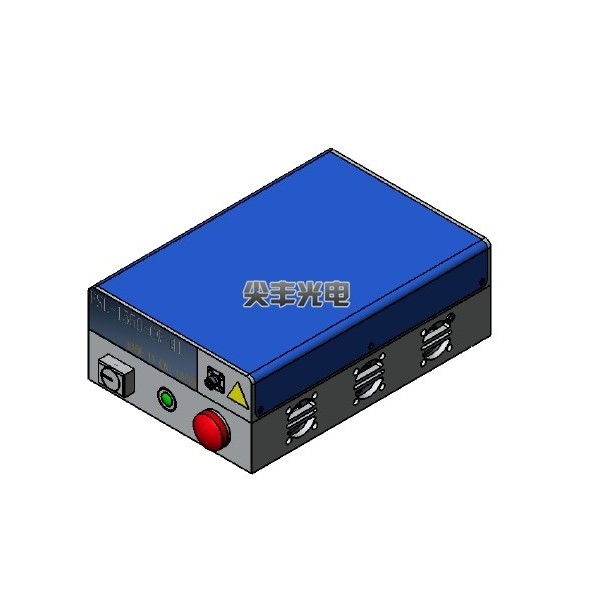

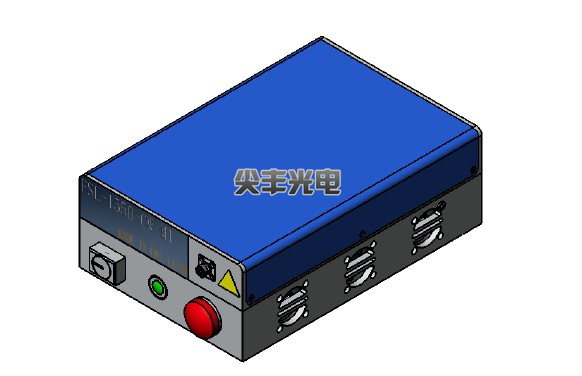

PULSED FIBER LASER AT 1064 nm

https://www.aoetech.com/436-671-thickbox/fl-1064-p.jpg

PULSED FIBER LASER AT 1064 nm

Description
PDF Download

PULSED FIBER LASER AT 1064 nm

FL-1064-P /1~5W

All fiber pulsed laser at 1064 nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in scientific research, life science, medical , material processing, microelectronics, OEM, interference, military defense, laser marking, physics experiment, etc.

SPECIFICATIONS:

Wavelength (nm)	1064±5
Operating mode	Pulsed
Output power (W)	1~5
Pulsed width(ns)	5~50 variable
Repetition frequency（kHz）	50~1000
Power stability (rms, over 4 hours)	<1%
M2 factor	<1.5
Delivery Cable Length(m)	2
Polarization State	Random
Warm-up time (minutes)	<15
Beam height from base plate (mm)	58
Operating temperature (℃)	15~35
Power supply (V DC)	12
Expected lifetime (hours)	10000
Warranty	1 year
FL-1064-P	FL-1064-P
220(L)×150(W) × 75(H), 4 kg	220(L)×150(W) × 75(H), 4 kg
