Dichroic Filters

Dichroic Filters

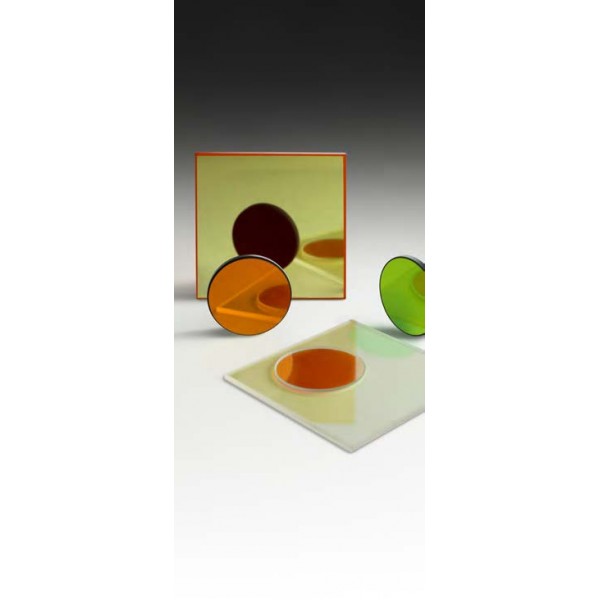

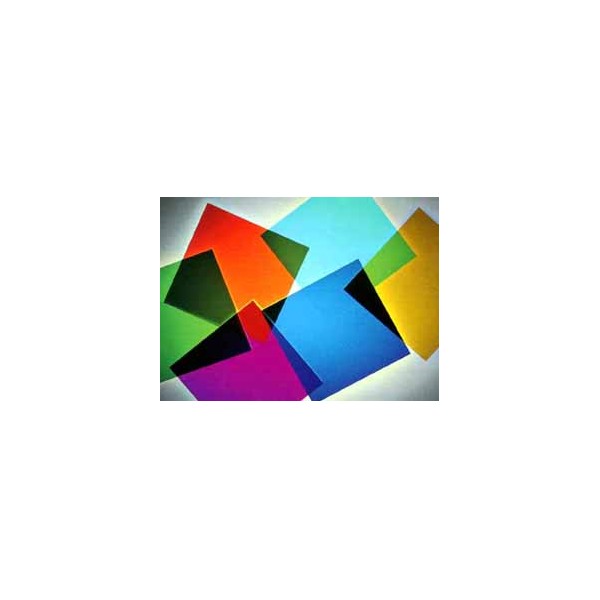

Far more durable than dyed plastic or gelcoated types, dichroic glass filters have a hard dielectric film created by thin layers of metallic oxides. These color separation filters are designed to isolate certain regions of the visible spectrum, reflecting rather than absorbing unwanted frequencies. As a result,they not only produce pure, intense color but also withstand the heat and UV energy from high-energy light sources. Commonly used as light balancing filters in color enlargers and photocopiers, dichroic filters are suitable for any application that requires separating the incident energy into two or more light beams.

Applications

• Fluorescence Microscopy
• UV-VIS Irradiation
• Camera Imaging
• Stage Lighting
• Architectural Lighting
• Projection Displays
• Color Enlargers
• Photocopiers

General Specifications

Thickness:                                    1.0mm ±0.25mm

Size Tolerance:                             +0.0mm/-0.25mm

Min. Clear Aperture:                      95% of outside dimension

Substrate Material:                        Soda lime glass

Flatness:                                       3–5 waves per 25mm

Parallelism:                                   3 arc minutes or better

Surface Quality:                            80/50 per MIL-C-48497A

Humidity and Abrasion:                Per MIL-C-48497A

Max. Operating Temperature:      +200°C

Mechanical:                                  Unmounted

Optional:Mounted in threaded ring - see pg 60 for thread sizes
