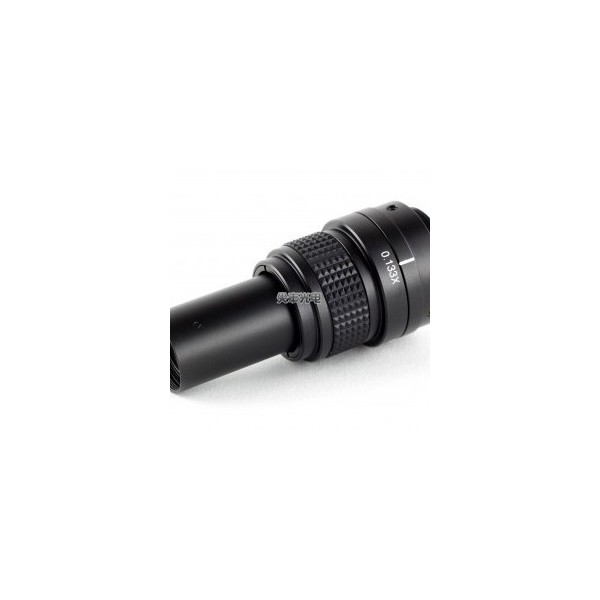

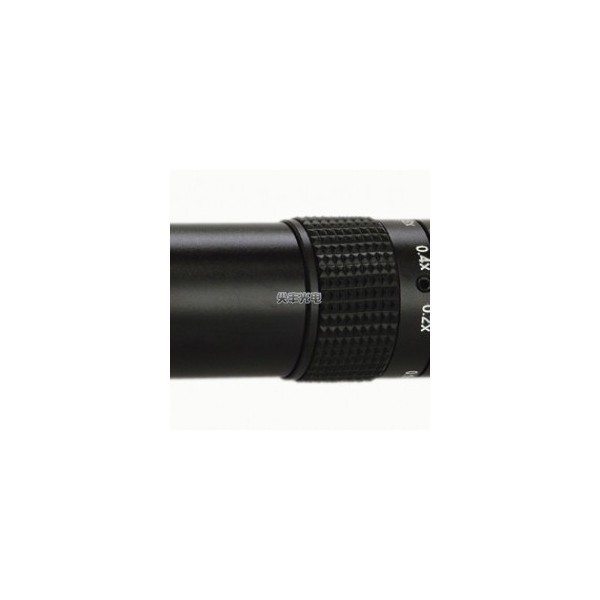

BSTS93002 - 8X Zoom

BSTS93002 - 8X Zoom

BSTS93002 - 8X Zoom

The Best scientific Mini zoom range is designed to work in those hard to reach places where space is at a premium. Variable focal length lenses allow the user to vary the magnification of the sample without changing the image point.Both an 8X and a 3X zoom’s available. Operating at a working distance of 200mm. Please see the data sheets for more information and feel free to contact best scientific for advice of formulating a vision system for your application.

Manufacturer: Best Scientific

  • Product code: BSTS93002 - 8X Zoom
  • Focal length: 21.99mm - 72.44mm
  • Camera chip format: 1/2 inch
  • Minimum WD: 200mm
  • Max aperture ratio: F/7.5
  • Max image format: 6.4 x 4.8mm (8mm diagonal)
  • Camera mount: C-Mount
  • Focusable: Yes
  • Iris diaphram: No
  • Application: Increased Mag with Lower WD available with auxilary lenses
  • Diameter: 29mm
  • Lense length: 99mm
  • Lense weight: 100g
