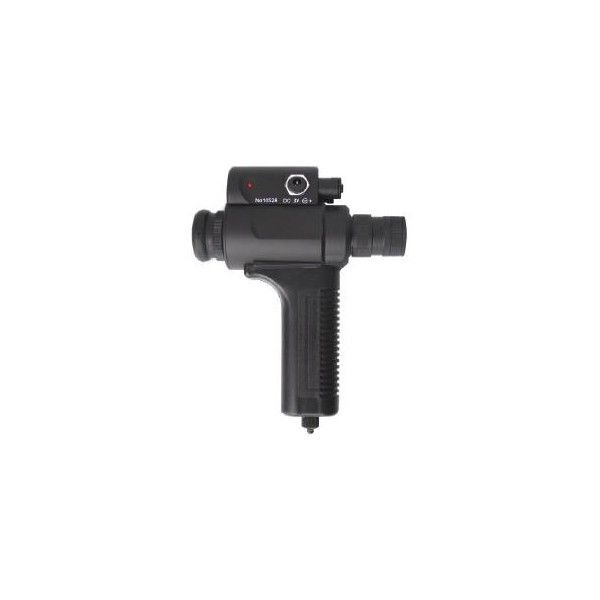

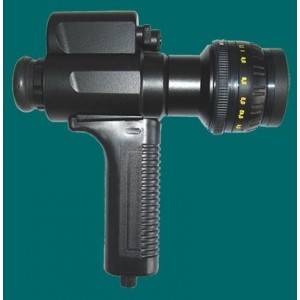

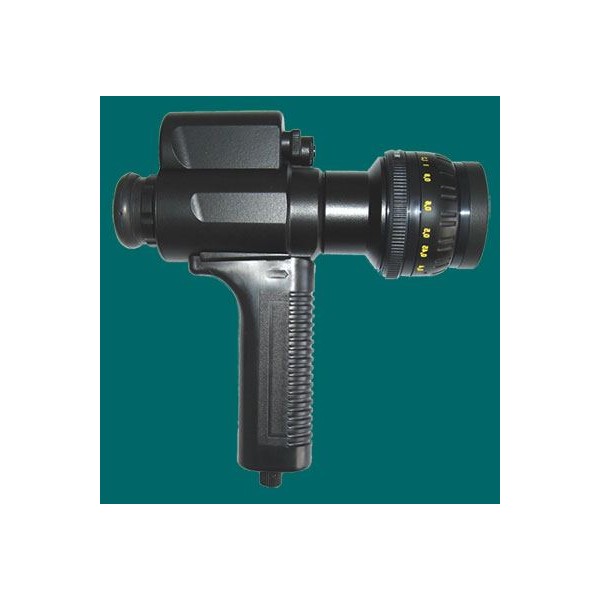

INFRARED VIEWER ABRIS-M

The ABRIS-M series are high performance infrared viewers designed to observe radiation emitted by infrared sources in the 270-2000 nm spectral region.

Description
PDF Download

INFRARED VIEWER ABRIS-M

The ABRIS-M series are high performance infrared viewers designed to observe radiation emitted by infrared sources in the 270-2000 nm spectral region.
The lightweight, compact device can be used hand-held, post mounted with the 1/4-20 internal thread or face mask mounted for hands free operation. The infrared viewers have autonomous 1.5V supply from one AAA battery and plug for external 3V supply for any OEM applications.

INFRARED VIEWER

PECIFICATIONS
	Version 1	Version 2
Spectral sensitivity	Abris-M 2000 350-2000nm
Resolution (center)	20 degrees60lp/mm
Field of view	40 degrees	20 degrees
Magnification	1X	2X
Objective lens	F1.4/26mm without iris	F2/50mmwith iris
Focus	0.15m to inf.	0.15 to inf.
Battery	1.5V «AAA» type
Battery life (continuous)	35 hours
Input voltage from external power supply	DC 3V, 20 mA max.
Weight	0.38kg	0.42kg
Dimensions	155x78x55 mm	220x78x55 mm
Temperature range	-10°C...+40°C

SPECTRAL SENSITIVITY

Approximately minimum power densities required to view
an infrared laser beam from a distance one meter for Abris-M 2000:
3 mW/cm*cm for a 1,5 μm
50 mW/cm*cm for a 1,7 μm
180mW/cm*cm for a 1,8 μm
2 W/cm?*cm for a 2,0 μm

Accessories available upon request:
1. Facemask for hands free operation.
2. Infrared illuminator 800nm, 900nm wavelength.
3. Neutral density filter (2-5% at 1.064nm laser wavelength).
4. Camera adapter to a CCD camera.
5. Microscope adapter.
6. Iris diaphragm to lens 1X.
7. Video adapter VA-1

Standard kit includes: IR viewer, IR filter, handle, battery, case.
