Benchtop EDFA

Benchtop EDFA

This benchtop optical fiber amplifier (EDFA) is designed for lab and factory test. The key components of the product are high reliability PUMP laser.

Benchtop EDFA

JF8111Series

Description:

This benchtop optical fiber amplifier (EDFA) is designed for lab and factory test. The key components of the product are high reliability PUMP laser. A unique APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuit insures the high stability and reliability output power, the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system to ensure the control, adjustment and monitor are intelligent and easy.

Open RS232 interface ensure connectivity to any other system.



This product employ single mode Erbium or Ytterbium doped fiber amplifier technology. Max saturated output power up to 200mW (23dBm). High power OFA requirement could refer to HA series (up to 10W).

Application:

  1. Lab test
  2. Factory test
  3. Scientific research
  4. Pre-amplifier
  5. Line amplifier
  6. Booster amplifier

Feature:

◆  Single channel, DWDM, C band, C+L band is optional.

◆  High power output up to 200mW

◆  Low Noise Figure: Typ <4.5dB

◆  APC,ACC,AGC is optional

◆  High precise ATC control circuit

◆  LCD display, knob adjustable

◆  Open RS232 interface

◆  Dual MPU control

◆  Module, Benchtop, 1RUis optional.

◆  Customized is available..

Characteristics:

Parameter

Symbol

Min

Typ

Max

Unit

Wavelength *

λc

1530

1550

1565

nm

λ1060

1030

1060

1090

nm

Output power*

Po

-----

-----

200

mW

Input power *

Pi

-----

-----

10

mW

Gain

G

-----

20

45

dB

Noise Figure

NF

-----

------

5.5

dB

Output power stability

ΔTl

-----

±0.05

±0.1

dB

Return Loss

RL

45

------

------

dB

Input/output Isolation

ISO

30

------

------

dB

Input Pump Leakage

PLKin

-30

------

------

dB

Output Pump Leakage

PLKout

-40

------

------

dB

PDG

PDG

-----

------

0.2

dB

PMD

PMD

-----

------

0.5

ps

Voltage

V

174

-----

260

VAC

Comsunption

Pc

-----

-----

15

W

Operating Temperature

Tw

0

-----

40

Storage Temperature

Ts

-40

-----

80

*Optional

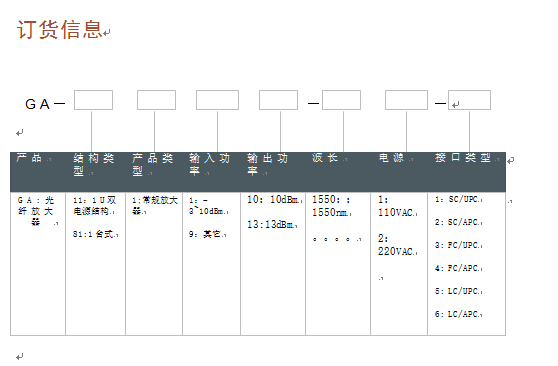

Example:
