Single Mode Pump Laser Source

Single Mode Pump Laser Source

JF8147Series

Description

The Laser diode optical source is designed as a lab and manufacture testing equipment. The multi-quantum-well laser and FBG Pump stabilizer are employed in it as the key component to ensure the high spectrum performance.

Single Mode Pump Laser Source

JF8147Series

Description

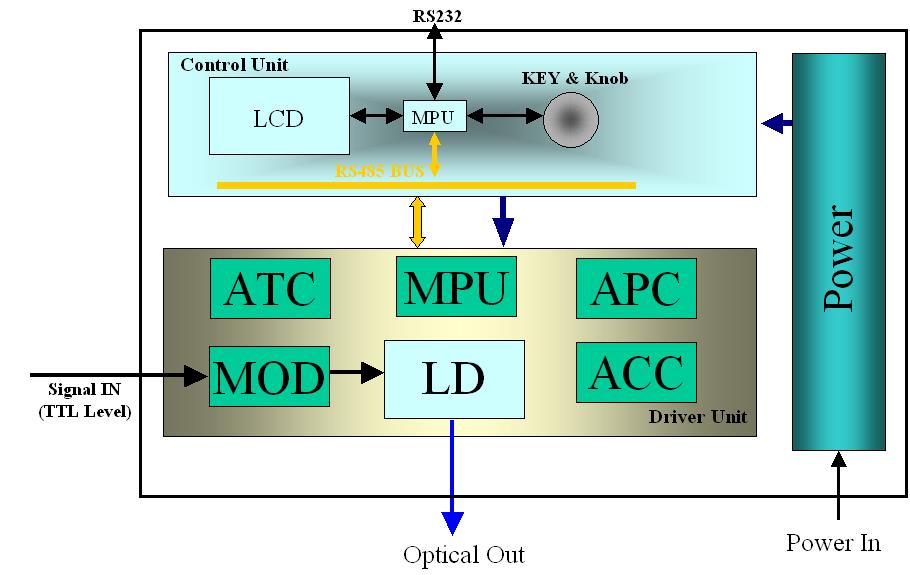

The Laser diode optical source is designed as a lab and manufacture testing equipment. The multi-quantum-well laser and FBG Pump stabilizer are employed in it as the key component to ensure the high spectrum performance. A proprietary ATC and APC circuit insures the stability output power. Operation and remote control is very easy by the predominant MPU.

Typical application:

Erbium doped fiber amplifier and laser diode:

980nm, 1480nm Pump

Yb-doped fiber amplifier and Er-doped fiber amplifer:

976nm Pump

Raman amplifier:        1420~1470nm Pump

other:                808nm, 1064nm, 1053nm

Application

1. OFA Research, Test and Manufacture

2. Optical Fiber Laser Researching

3. Passive Component Test and Manufacture

4. WDM Test

5. Lab Testing

Features

●Output Power can be Adjustable

●High output power up to 700mW

●Benchtop, Module is available

●Intelligent for Operation

●Easy Control by Other Equipments

●980nm, 1480nm, or other wavelength can be optional

●Friendly Operating Interface: LCD Display Status

●High Precise APC and ATC Circuit

Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

Output power  NOTE1

Po

10

------

700

mW

Peak wavelength NOTE2

λp

972

-------

985

nm

1420

-------

1500

nm

-------

808

-------

nm

-------

1060

-------

nm

3dB bandwidth

Δλ

------

1

2

nm

Output Power Stability in 15 minutes

ΔPS

------

-------

±0.05

dB

Output Power Stability in 8 hours

ΔPL

------

-------

±0.2

dB

TEC Stability

ΔTl

------

±0.1

±0.2

TEC operating Range

Tl

20

25

30

Operating Voltage NOTE3

V

170

220

260

VAC

Consumption

Pc

------

------

10

W

NOTE1:Output Power can be adjustable between 100 mW and 700mW

NOTE2:Customer Optional, 1480nm is available

NOTE3:Operating Voltage of  Module is ±5V

Single Mode Pump Laser Source

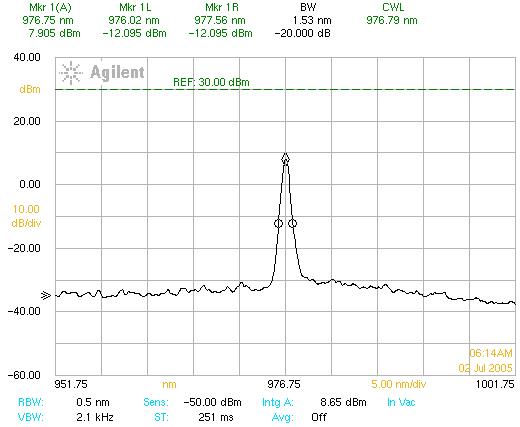

 Example Spectrum

Single Mode Pump Laser Source

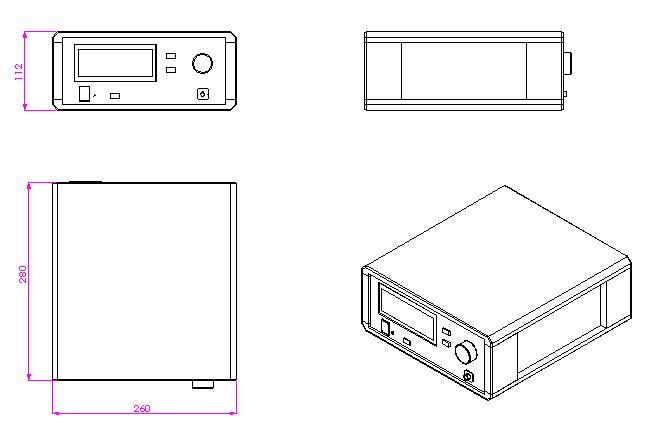

Mechanical Dimension

JF8147:280*260*112mm

 Single Mode Pump Laser Source

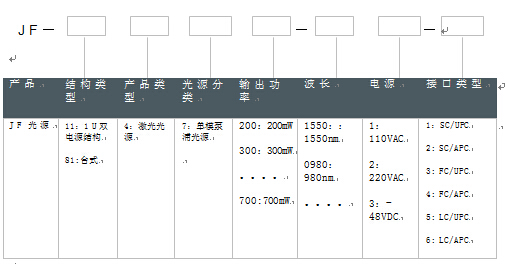

Order Information

 Single Mode Pump Laser Source
